The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

MDR – Medical Device Regulation (EU)
The Medical Device Regulation (MDR) defines harmonized requirements across Europe for products intended for medical applications. MDR-compliant nitrogen containers meet the highest standards in terms of safety, quality, and documentation, and are specifically designed for use in sensitive environments such as medical, laboratory, and research settings.
They offer verified reliability, compliant design, and full traceability throughout the entire product lifecycle.

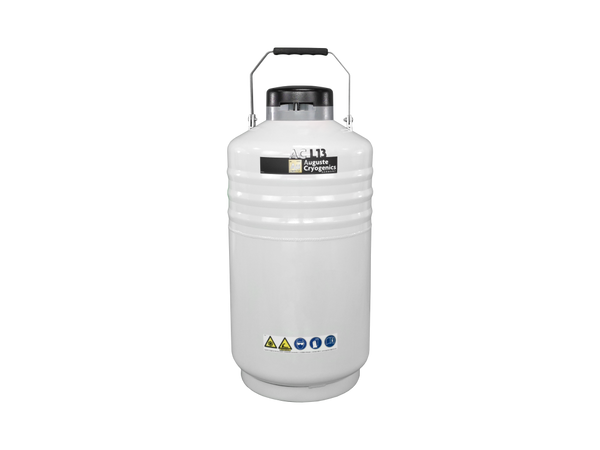

Technical Data

AC L13	Part No. H-AAD1100064
LN2 capacity (liters)	13
Empty weight (kg)	6,3
Neck opening (mm)	50
Outside diameter (mm)	310
Total height (mm)	627
Static evaporation rate (liters / day)	0,12
Static hold time (days)	109
Canister diameter (mm)
Canister height (mm)
Canister Number	0
Straw holding capacity 0,25 ml (-S)
Straw holding capacity 0,5 ml (-S)
Straw holding capacity 0,25 ml (-L)
Straw holding capacity 0,5 ml (-L)
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	350350690
Shipping volume (m3)	0,085
Weight including packaging (kg)	8,2

Download data sheet

Specifications

LN2 capacity (liters): 13
Empty weight (kg): 6,3
Neck opening (mm): 50
Outside diameter (mm): 310
Total height (mm): 627
Static evaporation rate (liters / day): 0,12
Static hold time (days): 109
