#VERTICAL-750

The Auguste Cryogenics mircobulk product line offers an alternative to high-pressure and liquid cylinder distribution in an easy to install and easy to operate platform. Expertly designed and built for safety and performance, these vessels provide uninteruptable supply of liquified technical gases. Auguste Cryogenics encorporates the GOLD standard of vacuum technology for maxium hold time and protects that vacuum integrity with a 5 year warranty.

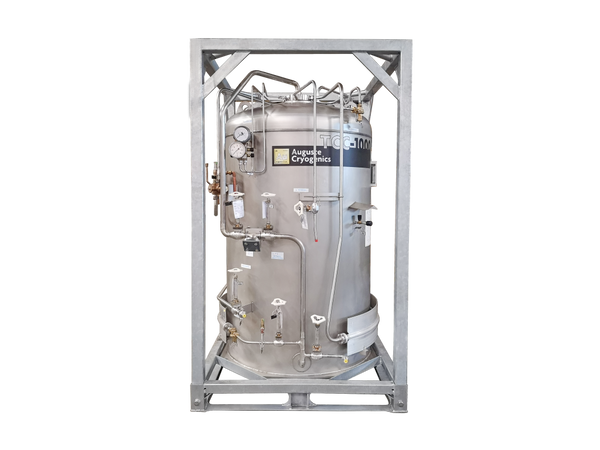

The TCC (Transportable Cold Converters) vessels are available in 750 and 1,000 liters. These tanks are equipped with a stainless steel frame for extra protection and optimized transportability. The TCC vessels are TPED approved.

On-site microbulk storage from Auguste Cryogenics helps you maximize safety, quality and efficiency in your operations:

Mode change - no more swapping full-for-empty cylinder handling.
Dedicated cylinder set up for your application.
Permanent connection, perfectly dialed in Pressure Building regulator.
Product Range from high pressure gas to low pressure liquid delivery.
Built around application unlike high pressure bottle or liquid cylinder.
Ideal for liquid withdrawal (especially when tied into AC Medical family of products).
Right sized for 1 fill per week or 1 fill per month simplifying inventory management.
With right sizing no need for excess cylinder inventory (leads to vent loss).
Accurate contents gauge and ability to digitally tie into SCADA system or telemetry remote monitoring to eliminate emergency deliveries by monitor and report status and fill needs.
Proactive delivery of consistent high purity liquid to eliminate potential contamination.
“Universal” fill system is compatible with all microbulk and bulk delivery transports.

Why buy Auguste Cryogenics microbulk?
Because Auguste Cryogenics knows cryogenics customers’ needs and has provided quality products for over 50 years.

The microbulk product line features:

Standard sizes between 750 to 1,000 liters and working pressures of up to 37 bar.
Quality Materials: Durable stainless steel, super insulated, digital gauges.
Automatic fill shut-off: Functions with most microbulk delivery trucks.
Reliable: Built to last, 5 year vacuum warranty.
Telemetry Ready: Plug into your network or build new to suit.

	microbulk Product Lines General Technical Data
Outer vessel	Stainless Steel
Inner vessel	Stainless Steel
Insulation	Multilayer Super Insulation, Gold Standard vacuum w/ 5 years warranty
Cleaning	For oxygen service
Pressure range	Standard MAWP 8.0 – 24.0 – 37.0 bar
Features	• Steel pallet optimized for fork lift operation • TCC vessels with steel frame for additional protection • TCC models TPED approved • Optional features and components available on request

Technical Data

AC TCC 750	8.0 bar	24.0 bar	37.0 bar
Volume gross capacity (Liter)*	810	810	800
Volume net capacity (95%) (Liter)	770	770	760
Average loss rate/day (N₂/%/day)	1,55	1,55	1,51
Gas withdrawal rate (m3/hr)	30	30	30
Auto Pressure building	yes	yes	yes
Weight empty (kg)**	800	840	940
Weight full (N₂) (kg)**	1450	1490	1590
Height (mm)**	2000	2000	2000
Diameter (mm)	1100	1100	1100
Pallet size (mm)	1300x1500	1300x1500	1300x1500

* Volumes can deviate as consequence of the cold stretching process.
** Weight and Height includes standard pallet and frame.

Note: The product image is a sample illustration.

Download datasheet:

#VERTICAL-1000

The Auguste Cryogenics mircobulk product line offers an alternative to high-pressure and liquid cylinder distribution in an easy to install and easy to operate platform. Expertly designed and built for safety and performance, these vessels provide uninteruptable supply of liquified technical gases. Auguste Cryogenics encorporates the GOLD standard of vacuum technology for maxium hold time and protects that vacuum integrity with a 5 year warranty.

The TCC (Transportable Cold Converters) vessels are available in 750 and 1,000 liters. These tanks are equipped with a stainless steel frame for extra protection and optimized transportability. The TCC vessels are TPED approved.

On-site microbulk storage from Auguste Cryogenics helps you maximize safety, quality and efficiency in your operations:

Mode change - no more swapping full-for-empty cylinder handling.
Dedicated cylinder set up for your application.
Permanent connection, perfectly dialed in Pressure Building regulator.
Product Range from high pressure gas to low pressure liquid delivery.
Built around application unlike high pressure bottle or liquid cylinder.
Ideal for liquid withdrawal (especially when tied into AC Medical family of products).
Right sized for 1 fill per week or 1 fill per month simplifying inventory management.
With right sizing no need for excess cylinder inventory (leads to vent loss).
Accurate contents gauge and ability to digitally tie into SCADA system or telemetry remote monitoring to eliminate emergency deliveries by monitor and report status and fill needs.
Proactive delivery of consistent high purity liquid to eliminate potential contamination.
“Universal” fill system is compatible with all microbulk and bulk delivery transports.

Why buy Auguste Cryogenics microbulk?
Because Auguste Cryogenics knows cryogenics customers’ needs and has provided quality products for over 50 years.

The microbulk product line features:

Standard sizes between 750 to 1,000 liters and working pressures of up to 37 bar.
Quality Materials: Durable stainless steel, super insulated, digital gauges.
Automatic fill shut-off: Functions with most microbulk delivery trucks.
Reliable: Built to last, 5 year vacuum warranty.
Telemetry Ready: Plug into your network or build new to suit.

	microbulk Product Lines General Technical Data
Outer vessel	Stainless Steel
Inner vessel	Stainless Steel
Insulation	Multilayer Super Insulation, Gold Standard vacuum w/ 5 years warranty
Cleaning	For oxygen service
Pressure range	Standard MAWP 8.0 – 24.0 – 37.0 bar
Features	• Steel pallet optimized for fork lift operation • TCC vessels with steel frame for additional protection • TCC models TPED approved • Optional features and components available on request

Technical Data

AC TCC 1000	8.0 bar	24.0 bar	37.0 bar
Volume gross capacity (Liter)*	990	990	980
Volume net capacity (95%) (Liter)	950	940	930
Average loss rate/day (N₂/%/day)	1,50	1,50	1,49
Gas withdrawal rate (m3/hr)	30	30	30
Auto Pressure building	yes	yes	yes
Weight empty (kg)**	880	920	1040
Weight full (N₂) (kg)**	1680	1720	1830
Height (mm)**	2220	2220	2220
Diameter (mm)	1100	1100	1100
Pallet size (mm)	1300x1500	1300x1500	1300x1500

* Volumes can deviate as consequence of the cold stretching process.
** Weight and Height includes standard pallet and frame.

Download datasheet:

#HORIZONTAL-600

Auguste Cryogenics HTCC microbulk series. Initially available with 600 and 1,000 liter volume, these horizontal stainless steel tanks are sturdily built for operation in demanding over the road environments.

The vessels of the AC HTCC series are mountable on small trucks, allowing for the convenient distribution of liquefied cryogenic gas where you need it. Due to their transportability, flexibility and reliability, the containers are destined to become an irreplaceable part of your liquefied gas supply chain. All AC HTCC microbulk tanks are built to the highest standards in our ISO 9001 certified production facility in Kosice/Slovakia. They feature the famous Auguste Cryogenics GOLD Standard vacuum with 5 years warranty and are TPED approved.

	microbulk Product Lines General Technical Data
Outer vessel	Stainless Steel
Inner vessel	Stainless Steel
Insulation	Multilayer Super Insulation, Gold Standard vacuum w/ 5 years warranty
Cleaning	For oxygen service
Pressure range	Standard MAWP 11.0 bar
Features	• Steel pallet optimized for fork lift operation • Steel ring for additional protection of piping • TPED approval \| truck mountable • Optional features and components available on request

Technical Data

AC HTCC 600	11.0 bar
Volume gross capacity (Liter)*	606
Volume net capacity (95%) (Liter)	576
Capacity N₂ (kg)	465
Capacity O₂ (kg)	657
Capacity Ar (kg)	802
Auto Pressure building	optional
Weight empty (kg)**	410
Weight full (N₂) (kg)**	875
Height (mm)	1145
Diameter (mm)	1100
Length (mm)	1535

* Volumes can deviate as consequence of the cold stretching process.
** Estimated values. | All specifications are subject to changes without prior notice.

HTCC including:

Transport frame (Support frame under the HTCC so that it can be moved with a forklift)
Liquid withdrawal
PBU coil + regulator

Note: The product image is a sample illustration.

Download datasheet:

#HORIZONTAL-1000

Auguste Cryogenics HTCC microbulk series. Initially available with 600 and 1,000 liter volume, these horizontal stainless steel tanks are sturdily built for operation in demanding over the road environments.

The vessels of the AC HTCC series are mountable on small trucks, allowing for the convenient distribution of liquefied cryogenic gas where you need it. Due to their transportability, flexibility and reliability, the containers are destined to become an irreplaceable part of your liquefied gas supply chain. All AC HTCC microbulk tanks are built to the highest standards in our ISO 9001 certified production facility in Kosice/Slovakia. They feature the famous Auguste Cryogenics GOLD Standard vacuum with 5 years warranty and are TPED approved.

	microbulk Product Lines General Technical Data
Outer vessel	Stainless Steel
Inner vessel	Stainless Steel
Insulation	Multilayer Super Insulation, Gold Standard vacuum w/ 5 years warranty
Cleaning	For oxygen service
Pressure range	Standard MAWP 11.0 bar
Features	• Steel pallet optimized for fork lift operation • Steel ring for additional protection of piping • TPED approval \| truck mountable • Optional features and components available on request

Technical Data

AC HTCC 1000	11.0 bar
Volume gross capacity (Liter)*	996
Volume net capacity (95%) (Liter)	947
Capacity N₂ (kg)	765
Capacity O₂ (kg)	1080
Capacity Ar (kg)	1319
Auto Pressure building	optional
Weight empty (kg)**	480
Weight full (N₂) (kg)**	1250
Height (mm)	1145
Diameter (mm)	1100
Length (mm)	2278

* Volumes can deviate as consequence of the cold stretching process.
** Estimated values. | All specifications are subject to changes without prior notice.

HTCC including:

Transport frame (Support frame under the HTCC so that it can be moved with a forklift)
Liquid withdrawal
PBU coil + regulator

Download datasheet:

#searchwords TCC750 tcc750 TCC1000 tcc1000 Transportable Cold Converters HTCC600 htcc600 HTCC1000 htcc1000 Micro Bulk Tanks Microbulk Lagerbehälter für flüssigen Stickstoff LN2 Tank Stickstoff Lagerbehälter Vorratsbehälter Druckbehälter

Specifications

Capacity: 600-1000 Liter
Pressure: 8.0 | 11.0 | 24.0 | 37.0 bar
Type: Vertically & horizontally
Movable with forklift
Transport approval

WARENKORB

Titel

Produkte

AC SYS 480 ohne Lagerungsrahmen in Flüssigphase

AC TCC

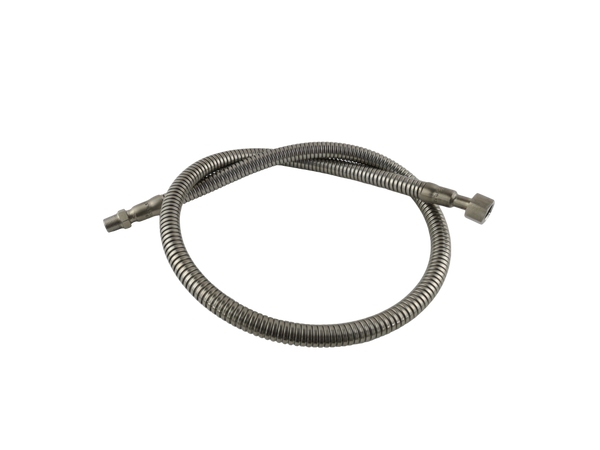

AC Entnahmeschlauch 1,2m

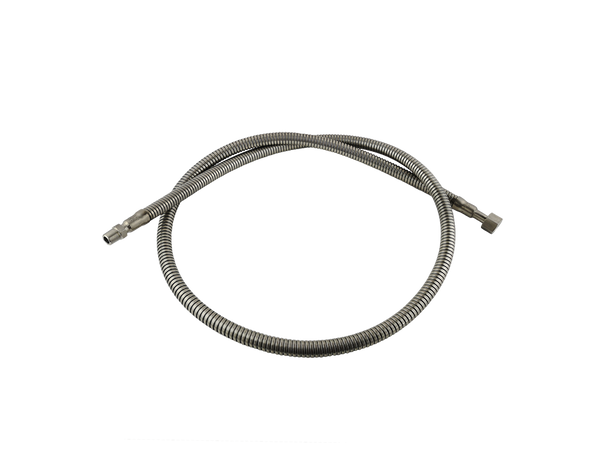

AC Entnahmeschlauch 1,8m

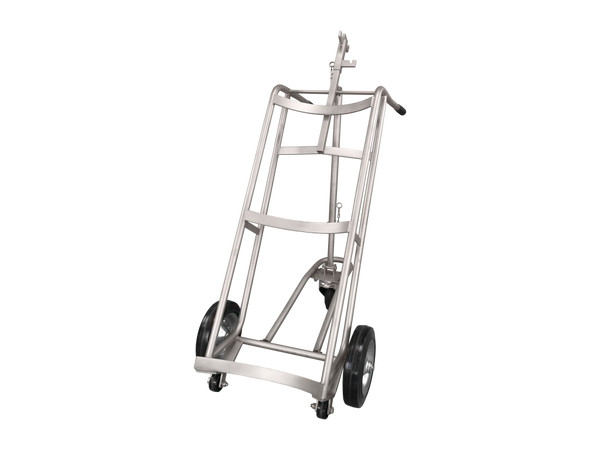

AC Transportkarre für Liquid Cylinder Serie
