The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

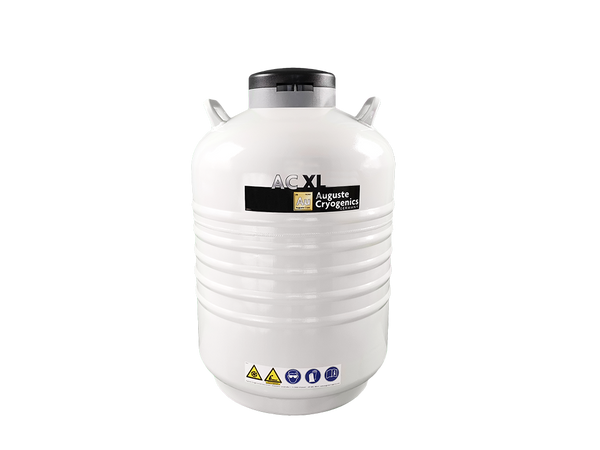

AC XL30T-L	Part No. H-AAD1100503
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,3
Static hold time (days)	106
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#searchwords ACXL ACXL30 ACXL30L ACXL30-L XL30 XL30-L XL30L ACXL30T ACXL30TL ACXL30T-L XL30T XL30T-L XL30TL Probenlagerung Aluminium Probenlager Behälter Kryolagerbehälter Gefrierbehälter Langzeitlagerung Zelllagerung Kryokonservierung Vitrifikation Kryolagerung Cryoconservation Lagerung biologischer Proben Kryoaufbewahrung Kryobehälter Probentank Zelltank Probenzellentanks Tiefsttemperatur-Gefrierbehälter ADR Transportbehälter Transport Behälter Transport Zelltransport Probentransport transport container transport cell transport sample transport Freezer Cell storage longterm long-term freezing container Sample storage Cryostorage

Specifications

Incl. 6 long canisters and 12 goblets

LN2 capacity (liters): 31,5
Empty weight (kg): 13,5
Neck opening (mm): 80
Outside diameter (mm): 462
Total height (mm): 717
Static evaporation rate (liters/day): 0,3
Static hold time (days): 106

WARENKORB

Titel

Produkte

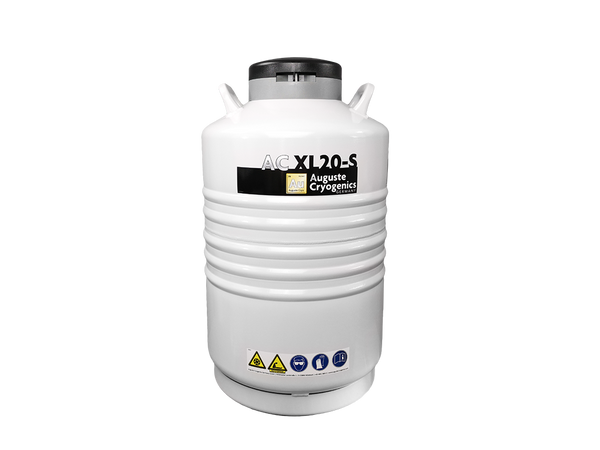

AC XL20-S – Kurze Kanister

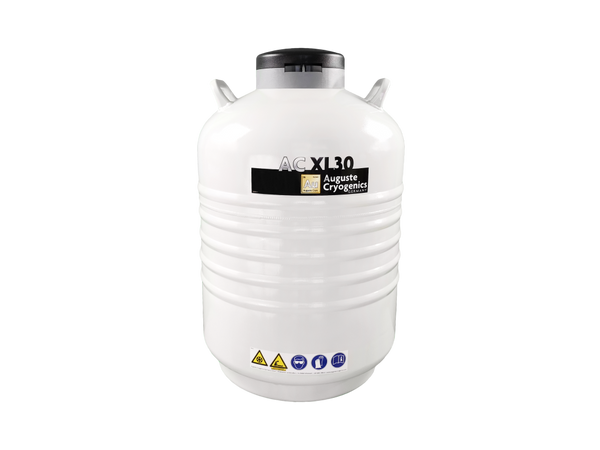

AC XL30

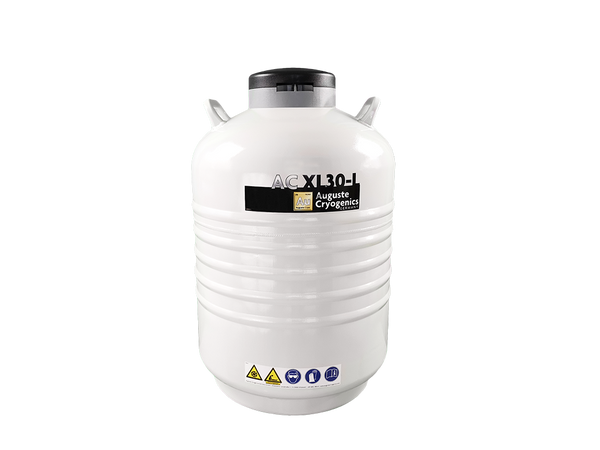

AC XL30-L - Lange Kanister

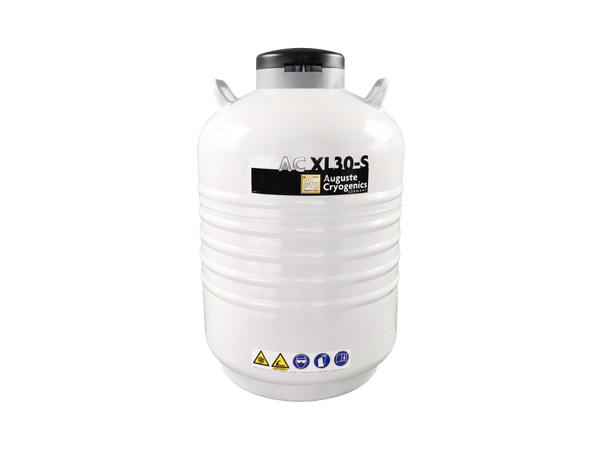

AC XL30-S – Kurze Kanister

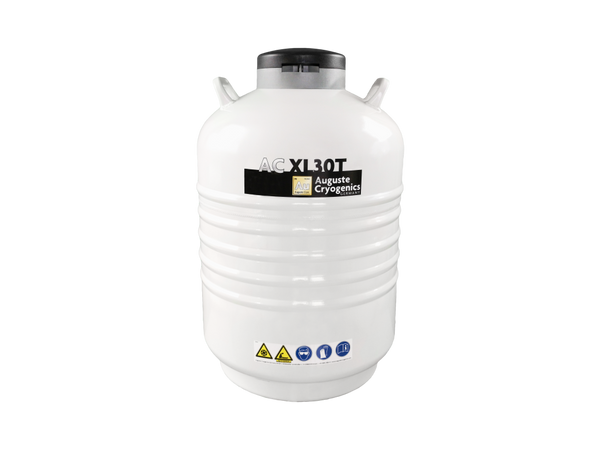

AC XL30T
