The Auguste Cryogenics AC LXX-T series is the state-of-the-art cryogenic storage & transport vessel with canisters for the storage of straws.

The models differ in the neck opening diameter and are configured for high capacity storage of vials. The 2XL and 3XL series with still bigger neck tube diameters are designed for racking systems which are suitable for vials and specimen bag inventory systems.

The vessel holds 6 canisters and is equipped with a lockable black lid.

All vessels of the Auguste Cryogenics Medical Family are designated as Class IIa MDD medical products compliant with the European Unions Medical Device Directive 93/42/EEC Appendix IX.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminium container and are specially intended for the transport of stored samples.
These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

#VIALS2mlCanister-180-101

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

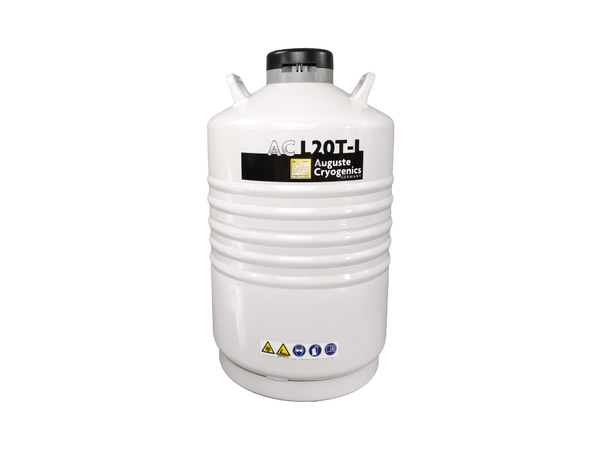

AC L20T-L	Part No. H-AAD1100349
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	677
Static evaporation rate (liters / day)	0,2
Static hold time (days)	101
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-S)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,1

#VIALS2mlCanister-180-179

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L35T-L	Part No. H-AAD1100351
LN2 capacity (liters)	35,5
Empty weight (kg)	14,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	757
Static evaporation rate (liters / day)	0,2
Static hold time (days)	179
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,8

#VIALS2mlCanister-504-147

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL50T-L	Part No. H-AAD1100354
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,34
Static hold time (days)	147
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	22,7

##VIALS2mlCanister-504-119

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL35T-L	Part No. H-AAD1100352
LN2 capacity (liters)	35,5
Empty weight (kg)	15,2
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,3
Static hold time (days)	119
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,6

#STRAWS025ml-05ml-1788-792-101

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L20T-S	Part No. H-AAD1100047
LN2 capacity (liters)	20
Empty weight (kg)	9,5
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	677
Static evaporation rate (liters / day)	0,2
Static hold time (days)	101
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,5

#STRAWS025ml-05ml-5022-2244-106

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL30T-S	Part No. H-AAD1100103
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,3
Static hold time (days)	106
Canister diameter (mm)	63
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5022
Straw holding capacity 0,5 ml (-S)	2244
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,3

#STRAWS025ml-05ml-1788-792-179

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L35T-S	Part No. H-AAD1100005
LN2 capacity (liters)	35,5
Empty weight (kg)	14,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,2
Static hold time (days)	179
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,8

#STRAWS025ml-05ml-5022-2244-119

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL35T-S	Part No. H-AAD1100006
LN2 capacity (liters)	35,5
Empty weight (kg)	15,2
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,3
Static hold time (days)	119
Canister diameter (mm)	63
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5022
Straw holding capacity 0,5 ml (-S)	2244
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,6

#STRAWS025ml-05ml-1788-792-209

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L50T-S	Part No. H-AAD1100107
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

#STRAWS025ml-05ml-5022-2244-147

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL50T-S	Part No. H-AAD1100109
LN2 capacity (liters)	50
Empty weight (kg)	17,5
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,34
Static hold time (days)	147
Canister diameter (mm)	63
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5022
Straw holding capacity 0,5 ml (-S)	2244
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	22,7

#STRAWS025ml-05ml-LongCanister2932-1284-101

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L20T-L	Part No. H-AAD1100349
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	677
Static evaporation rate (liters / day)	0,2
Static hold time (days)	101
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-S)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,1

#STRAWS025ml-05ml-LongCanister2932-1284-179

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L35T-L	Part No. H-AAD1100351
LN2 capacity (liters)	35,5
Empty weight (kg)	14,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	757
Static evaporation rate (liters / day)	0,2
Static hold time (days)	179
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,8

#STRAWS025ml-05ml-LongCanister8460-3624-119

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL35T-L	Part No. H-AAD1100352
LN2 capacity (liters)	35,5
Empty weight (kg)	15,2
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,3
Static hold time (days)	119
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,6

#STRAWS025ml-05ml-LongCanister2932-1284-209

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L50T-L	Part No. H-AAD1100353
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

#STRAWS025ml-05ml-LongCanister8460-3624-147

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL50T-L	Part No. H-AAD1100354
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,34
Static hold time (days)	147
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	22,7

#VIALS2mlRack-900-145

The aluminum containers of the 2XL- | 3XL-B - series from Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratory and technology.

The containers of the Auguste Cryogenics Medical Family stand out off through:

• High portability thanks to its low weight and compact dimensions
• Long holding times, resulting in high economic efficiency
• large storage capacity

The vacuum-insulated aluminum containers of the Medical Family are thus ideally suited for use in medical institutes, biological laboratories, artificial insemination institutes and pharmaceutical facilities. Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line vacuum-insulated aluminum container for transport and storage of nitrogen-cooled material. The products of this group were made for long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are depending on Design and equipment possible.

The containers of the AC Medical Family can be used in many ways - at insemination as well as in the medical and pharmaceutical field and for various industrial processes. Depending on the purpose and requirements biological material can be stored in the liquid or gas phase of the containers are stored.

The containers of the 2XL and 3XL-B models differ primarily due to their different neck diameters of 125 and 216 mm. you are primarily for the systematic storage of large quantities of biological material Material provided, the boxes in the stainless steel racks in the nitrogen liquid phase are cooled.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC 2XL50T-B	Part No. H-AAD1100053
LN2 capacity (liters)	50
Empty weight (kg)	17,3
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,45
Static hold time (days)	110
Racks	6
Dimensions of the racks (mm)	82*84
Dimensions of the cryo boxes (mm)	76*76
Floors per rack
2ml Vials capacity	900
25 ml blood bag racks (multi)
Levels per 25 ml blood bag rack (multi)
Boxes per level 25 ml (multi)
25 ml blood bag (multi)
50 ml blood bag racks (multi)
Levels per 50 ml blood bag rack (multi)
50 ml boxes per level (multi)
50 ml blood bag (multi)
ADR	yes
available as an MDD product	yes
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,4

#VIALS2mlCanister-1260-145

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC 2XL50T-L	Part No. H-AAD1100098
LN2 capacity (liters)	50
Empty weight (kg)	17,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Number of canisters	6
Conister height (mm)	276
Canister diameter (mm)	97
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	yes
available as an MDD product	yes
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,3

#VIALS2mlCanister-180-159

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L30T-L	Part No. H-AAD1100350
LN2 capacity (liters)	31,5
Empty weight (kg)	12,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	765
Static evaporation rate (liters / day)	0,2
Static hold time (days)	159
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

#VIALS2mlCanister-180-209

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L50T-L	Part No. H-AAD1100353
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

#VIALS2mlCanister-684-61

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+20T-L	Part No. H-AAD1100475
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,33
Static hold time (days)	61
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,8

#VIALS2mlCanister-684-96

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+30T-L	Part No. H-AAD1100295
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,33
Static hold time (days)	96
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,4

#VIALS2mlCanister-684-108

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+35T-L	Part No. H-AAD1100296
LN2 capacity (liters)	35
Empty weight (kg)	16
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,33
Static hold time (days)	108
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,6

#VIALS2mlCanister-504-106

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL30T-L	Part No. H-AAD1100503
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,3
Static hold time (days)	106
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,7

#STRAWS025ml-05ml-LongCanister19944-9048-145

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC 2XL50T-L	Part No. H-AAD1100098
LN2 capacity (liters)	50
Empty weight (kg)	17,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Number of canisters	6
Conister height (mm)	276
Canister diameter (mm)	97
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	yes
available as an MDD product	yes
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,3

#STRAWS025ml-05ml-11952-5124-145

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC 2XL50T-S	Part No. H-AAD1100097
LN2 capacity (liters)	50
Empty weight (kg)	17,3
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Canister diameter (mm)	97
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	11952
Straw holding capacity 0,5 ml (-S)	5124
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23

#STRAWS025ml-05ml-LongCanister2932-1284-159

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L30T-L	Part No. H-AAD1100350
LN2 capacity (liters)	31,5
Empty weight (kg)	12,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	765
Static evaporation rate (liters / day)	0,2
Static hold time (days)	159
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

#STRAWS025ml-05ml-1788-792-159

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC L30T-S	Part No. H-AAD1100101
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	765
Static evaporation rate (liters / day)	0,2
Static hold time (days)	159
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

#STRAWS025ml-05ml-5022-2244-31

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+10T-S	Part No. H-AAD1100293
LN2 capacity (liters)	10
Empty weight (kg)	6,2
Neck opening (mm)	91
Outside diameter (mm)	300
Total height (mm)	623
Static evaporation rate (liters / day)	0,32
Static hold time (days)	31
Canister diameter (mm)	63
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5022
Straw holding capacity 0,5 ml (-S)	2244
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	340340635
Shipping volume (m3)	0,071
Weight including packaging (kg)	9,5

#STRAWS025ml-05ml-LongCanister9400-4026-61

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+20T-L	Part No. H-AAD1100475
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,33
Static hold time (days)	61
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,8

#STRAWS025ml-05ml-5580-2493-61

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+20T-S	Part No. H-AAD1100294
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,33
Static hold time (days)	61
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,5

#STRAWS025ml-05ml-LongCanister9400-4026-96

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+30T-L	Part No. H-AAD1100295
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,33
Static hold time (days)	96
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,4

#STRAWS025ml-05ml-5580-2493-96

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+30T-S	Part No. H-AAD1100495
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,33
Static hold time (days)	96
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,4

#STRAWS025ml-05ml-LongCanister9400-4026-108

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+35T-L	Part No. H-AAD1100296
LN2 capacity (liters)	35
Empty weight (kg)	16
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,33
Static hold time (days)	108
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,6

#STRAWS025ml-05ml-5580-2493-108

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of cryo-tubes and straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL+35T-S	Part No. H-AAD1100496
LN2 capacity (liters)	35
Empty weight (kg)	16
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,33
Static hold time (days)	108
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	yes
available as an MDD product	no
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	20,3

#STRAWS025ml-05ml-LongCanister8460-3624-106

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC XL30T-L	Part No. H-AAD1100503
LN2 capacity (liters)	31,5
Empty weight (kg)	13,5
Neck opening (mm)	80
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,3
Static hold time (days)	106
Canister diameter (mm)	63
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	8460
Straw holding capacity 0,5 ml (-L)	3624
2ml Vials capacity	504
ADR	yes
available as an MDD product	yes
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	16,7

#STRAWS025ml-05ml-6250-3125-35

The aluminum vessels of the L | XL | XL+ | 2XL | 2XL+ - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:

high portability thanks to its low weight and compact dimensions
long holding times, resulting in high economic efficiency
large capacity of straws

The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities.
Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.

With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.

The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.

The containers of the L, XL, XL+, 2XL and 2XL+ models differ primarily in their neck diameters of 50, 80, 90, 125 and 127 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.

AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

Technical Data

AC 2XL15T-S (10)	Part No. H-AAD1100539
LN2 capacity (liters)	15
Empty weight (kg)
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	480
Static evaporation rate (liters / day)
Static hold time (days)	35
Canister diameter (mm)	70
Canister height (mm)	110
Canister Number	10
Straw holding capacity 0,25 ml (-S)	6250
Straw holding capacity 0,5 ml (-S)	3125
ADR	yes
available as an MDD product
Packing dimensions (mm)	490490660
Shipping volume (m3)
Weight including packaging (kg)	12,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 short canisters

Note: The product image is a sample illustration.

#All

Download datasheet:

WARENKORB

Titel

Produkte

ZELL TRANSPORT

Kryogene digitale Füllstandsanzeige C-Stic SGB

Kryogenschlauch

CRYOKIT-HANDSCHUHE

DRY SHIPPER

Bördelnippel für Spindelventil
