The vacuum-insulated aluminum containers of the L, XL+, 2XL, 2XL+, and 3XL series of the Auguste Cryogenics Medical Family are cryogenic storage vessels for the long-term storage of biological material in liquid nitrogen – with numerous application possibilities in laboratories as well as in medical, pharmaceutical, and industrial facilities.

Key Features:

High mobility due to low weight and compact dimensions
Long holding times with low nitrogen consumption
Large storage capacity
T-models with ADR approval – transportable in accordance with dangerous goods regulations

The individual vessel series mainly differ in their neck diameters (50, 90, 125, 127, and 216 mm) and are supplied as standard with short (-S, 120 mm) or long (-L, 276 mm) canisters, or racks with cryoboxes (-B). The short canisters are primarily used for the storage of cryogenic straws, while the long canisters each contain two goblets and are suitable for both straws and cryovials in holders. The racks are designed for the systematic storage of cryovials and are only used in the 2XL and 3XL series. These vessels are ideally suited for the structured storage of medium to large sample volumes in the liquid nitrogen phase; with long canisters and racks, storage in the gas phase may also be possible. Depending on the model and configuration, static holding times of three weeks to over half a year are possible.

A complete overview of all technical parameters for this container is provided in the “Technical Data” table below.

Overview of further models for CELL STORAGE:

T-Models
T-models are reinforced cryogenic storage and transport vessels. They are based on the L, XL+, 2XL, and 2XL+ series, but differ in their reinforced construction and are therefore designed for the safe transport of biological samples in liquid nitrogen. The “T” stands for transport: the vessels comply with ADR regulations for transport on public road and rail networks. These vessels combine storage and mobility, but are usually a compromise with regard to evaporation rate and holding time.

Example: AC L20-S (standard) and AC L20T-S (T-version).

AC FREEZER
Freezers are high-capacity stainless-steel cryogenic storage vessels specifically developed for the safe and economical long-term storage of larger sample quantities. They are used in medicine, pharmaceuticals, and research and are available with a capacity of 430 L, 480 L, or 860 L. The vessels are suitable for both gas-phase and liquid-phase storage. They can also be equipped with canisters, rack systems, and automatic filling and monitoring systems, and are ideal for research institutions, biobanks, and universities with high capacity requirements.

If you need assistance selecting the appropriate container, please consult our guide “Cryogenic Cell Storage: The Guide to Selecting the Right Container” or contact us directly.

MDR – Medical Device Regulation (EU)
The Medical Device Regulation (MDR) defines binding requirements across Europe for products intended for medical applications. MDR-compliant liquid nitrogen vessels are required for medical and regulated applications where safety, documentation, and traceability are required – for example in hospitals, IVF centers, or biobanks.

Technical Data

AC 2XL50T-L	Part No. H-AAD1100098
LN2 capacity (liters)	50
Empty weight (kg)	17,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Number of canisters	6
Conister height (mm)	276
Canister diameter (mm)	97
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	yes
available as an MDR product	yes (optional)
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#searchwords AC2XL AC2XL50 AC2XL50L AC2XL50-L 2XL 2XL50 2XL50-L 2XL50L AC2XL50T AC2XL50TL AC2XL50T-L 2XL50T 2XL50T-L 2XL50TL Probenlagerung Aluminium Probenlager Behälter Kryolagerbehälter Gefrierbehälter Langzeitlagerung Zelllagerung Kryokonservierung Vitrifikation Kryolagerung Cryoconservation Lagerung biologischer Proben Kryoaufbewahrung Kryobehälter Probentank Zelltank Probenzellentanks Tiefsttemperatur-Gefrierbehälter ADR Transportbehälter Transport Behälter Transport Zelltransport Probentransport transport container transport cell transport sample transport Freezer Cell storage longterm long-term freezing container Sample storage Cryostorage Cryonos cryogenic container liquid nitrogen container LN2 container cryogenic storage vessel biological sample storage cryogenic dewar liquid nitrogen tank sample storage container laboratory cryogenic vessel cell storage vessel Kryobehälter Flüssigstickstoffbehälter Stickstoffbehälter Kryotank Lagerbehälter Zelllagerung Kryolagerung Probenlagerung Biobank Behälter Laborbehälter MDR M D R Medical Device Regulation Medizinprodukt Auguste Cryogenics AC 2XL50T-L AC 2XL50T-L liquid nitrogen container AC 2XL50T-L cryogenic storage vessel AC 2XL50T-L Flüssigstickstoffbehälter AC 2XL50T-L Kryobehälter AC 2XL50T L AC 2XL50TL AC2XL50T-L AC2XL50TL 2XL50T-L 2XL50T L 2XL50TL AC 2XL50 AC2XL50 AC 2XL50 T AC2XL50T AC 2XL 50T-L AC 2XL 50T L AC 2XL 50TL 2XL 50T-L 2XL 50T L 2XL 50TL AC2XL50 AC2XL50-TL AC2XL50TL 2XL50 AC2XL50TL 2XL50 AC2XL50 AC2XL50TL H-AAD1100098 HAAD1100098 H AAD1100098 H-AAD-1100098 H-AAD 1100098 HAAD 1100098 AAD1100098 AAD 1100098 1100098 H-AAD2100098 HAAD2100098 H AAD2100098 H-AAD-2100098 H-AAD 2100098 HAAD 2100098 AAD2100098 AAD 2100098 2100098

Specifications

Incl. 6 long canisters and 12 goblets

LN2 capacity (liters): 50
Empty weight (kg): 17,6
Neck opening (mm): 125
Outside diameter (mm): 462
Total height (mm): 830
Static evaporation rate (liters/day): 0,36
Static hold time (days): 145

WARENKORB

Titel

Produkte

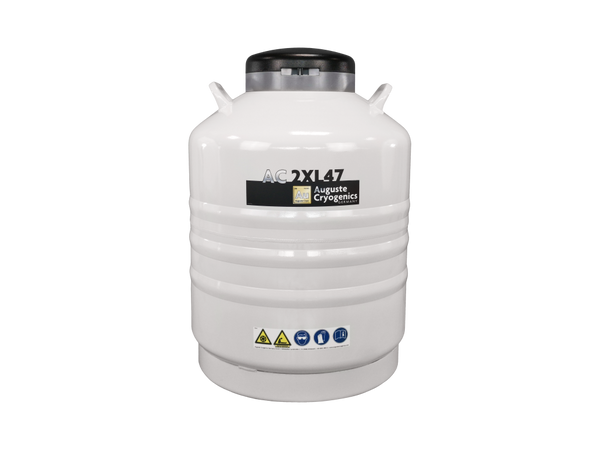

AC 2XL47-S (10) - Kurze Kanister

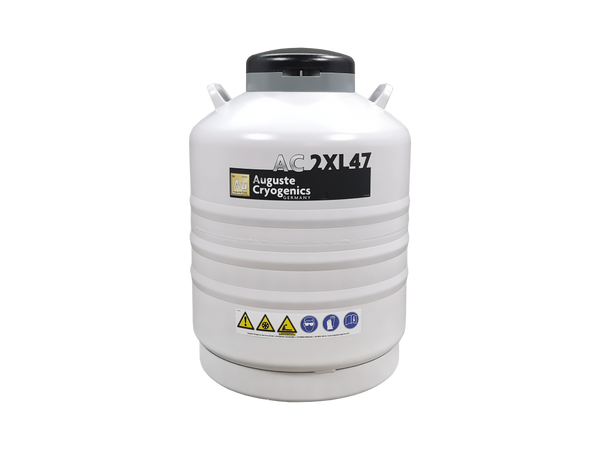

AC 2XL47-S - Kurze Kanister

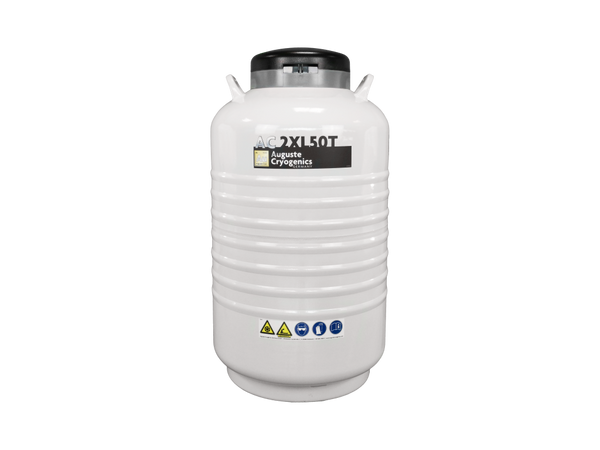

AC 2XL50T

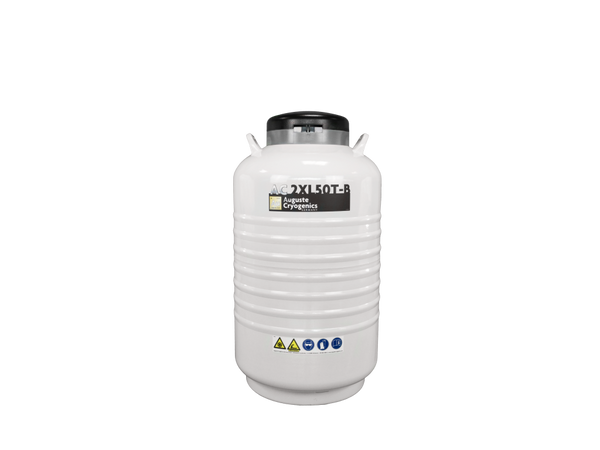

AC 2XL50T-B - Racks für Kryoboxen

AC 2XL50T-L – Lange Kanister

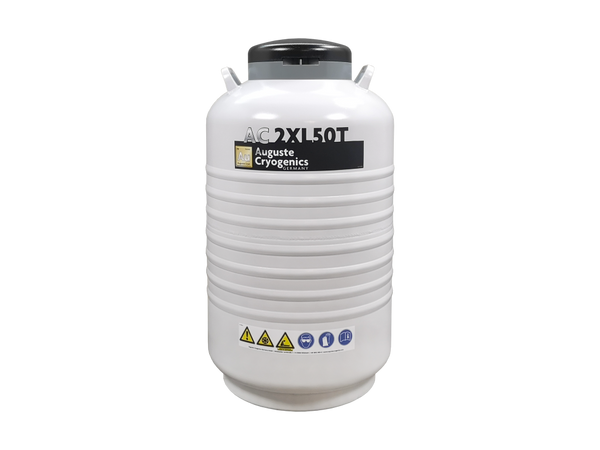

AC 2XL50T-S – Kurze Kanister
