#All

Consists of:

1. AC DATA LOGGER FOR DRY SHIPPER SERIES

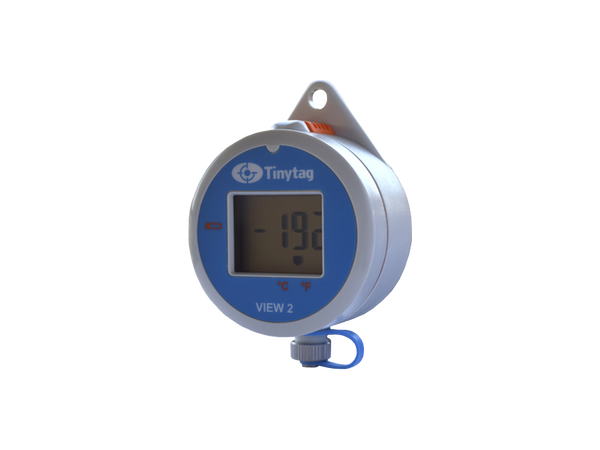

Tinytag Data Logger for Dry Shipper CR-0100

• Ultra-low temperature data logger
• -196°C nitrogen dry vapour applications
• 252mm probe length
• Digital display
• Visual alarm warnings during transit

Tinytag for Dry Shipper is a standalone, ultra-low temperature data logger with an integrated PT1000 probe - for use in cryogenic vessels. Data loggers are an essential tool for monitoring the temperature of clinical samples in transit in nitrogen dry vapour flasks. The Tinytag Dry Shipper data logger is designed to monitor and record temperatures of gametes, embryos and stem cells being transported in the shipper to - 196°C.
Housed in a splashproof IP65 case, the unit can be mounted to the flask’s lid with the probe inserted through an insulating plug into the tank. It has a digital display of current readings and user programmable alarms that will trigger visual warnings when limits have been exceeded during transit.
The logger uses Tinytag Explorer software for easy download, display and management of data. Information can be displayed in a graph or as a table of readings, and exported for use in third party programs such as MS Excel.

Download data sheet

#WITHINSTALLATION-WITHSOFTWARE-WITHCERTIFICATE

2. INSTALLATION

Installation of the AC Data Logger on the container in the middle of the plug. The lockable lid is cut in such a way that it can be closed even though the AC Data Logger is installed.

3. STARTER SOFTWARE

The explorer software is required to read out the data recorded with a data logger with a USB connection.

The software is provided with a license that allows an unlimited number of users per location. You only need to purchase an additional license if you intend to use the software at another location.

The starter package consists of the Explorer software (SWCD-0040), a USB interface cable (CAB-0007-USB) and a quick start guide in German, English, French, Italian, Spanish and Swedish.

Download data sheet

4. CALIBRATION CERTIFICATE

Calibration certificate: temperature (-196°C). One calibration point at -196°C

#WITHINSTALLATION-WITHSOFTWARE-WITHOUTCERTIFICATE

2. INSTALLATION

Installation of the AC Data Logger on the container in the middle of the plug. The lockable lid is cut in such a way that it can be closed even though the AC Data Logger is installed.

3. STARTER SOFTWARE

The explorer software is required to read out the data recorded with a data logger with a USB connection.

The software is provided with a license that allows an unlimited number of users per location. You only need to purchase an additional license if you intend to use the software at another location.

The starter package consists of the Explorer software (SWCD-0040), a USB interface cable (CAB-0007-USB) and a quick start guide in German, English, French, Italian, Spanish and Swedish.

Download data sheet

#WITHINSTALLATION-WITHOUTSOFTWARE-WITHCERTIFICATE

2. INSTALLATION

Installation of the AC Data Logger on the container in the middle of the plug. The lockable lid is cut in such a way that it can be closed even though the AC Data Logger is installed.

3. CALIBRATION CERTIFICATE

Calibration certificate: temperature (-196°C). One calibration point at -196°C

#WITHINSTALLATION-WITHOUTSOFTWARE-WITHOUTCERTIFICATE

2. INSTALLATION

Installation of the AC Data Logger on the container in the middle of the plug. The lockable lid is cut in such a way that it can be closed even though the AC Data Logger is installed.

#WITHOUTINSTALLATION-WITHSOFTWARE-WITHCERTIFICATE

2. STARTER SOFTWARE

The explorer software is required to read out the data recorded with a data logger with a USB connection.

The software is provided with a license that allows an unlimited number of users per location. You only need to purchase an additional license if you intend to use the software at another location.

The starter package consists of the Explorer software (SWCD-0040), a USB interface cable (CAB-0007-USB) and a quick start guide in German, English, French, Italian, Spanish and Swedish.

Download data sheet

3. CALIBRATION CERTIFICATE

Calibration certificate: temperature (-196°C). One calibration point at -196°C

#WITHOUTINSTALLATION-WITHSOFTWARE-WITHOUTCERTIFICATE

2. STARTER SOFTWARE

The explorer software is required to read out the data recorded with a data logger with a USB connection.

The software is provided with a license that allows an unlimited number of users per location. You only need to purchase an additional license if you intend to use the software at another location.

The starter package consists of the Explorer software (SWCD-0040), a USB interface cable (CAB-0007-USB) and a quick start guide in German, English, French, Italian, Spanish and Swedish.

Download data sheet

#WITHOUTINSTALLATION-WITHOUTSOFTWARE-WITHCERTIFICATE

2. CALIBRATION CERTIFICATE

Calibration certificate: temperature (-196°C). One calibration point at -196°C
