The vacuum-insulated aluminum containers of the L, XL+, 2XL, 2XL+, and 3XL series from the Auguste Cryogenics Medical Family are cryogenic freezers designed for long-term storage of biological material in liquid nitrogen - offering numerous applications in laboratories as well as medical, pharmaceutical, and industrial facilities.

Key Features:

High mobility due to low weight and compact dimensions
Extended hold times with low nitrogen consumption
Large storage capacity
Partially ADR-approved - suitable for transport in accordance with hazardous goods regulations

Depending on the model and configuration, static hold times ranging from three weeks to over six months are achievable. Biological material can be stored either in the liquid or vapor phase, according to specific requirements.

A complete overview of all technical parameters for this container is provided in the “Technical Data” table below.

Model Overview:

L, XL+, 2XL, 2XL+
These models differ primarily in neck diameter (50, 90, 125, and 127 mm) and are standardly equipped with either short (-S, 120 mm) or long (-L, 276 mm) canisters. Short canisters are primarily intended for straw storage, while long canisters each hold two goblets and are suitable for both straws and cryovials in racks. They are ideal for structured storage of medium to large sample quantities in the liquid nitrogen phase; storage in the vapor phase is also possible with long canisters, if required.

2XL-B and 3XL-B
Featuring neck diameters of 125 mm and 216 mm, these models are standardly equipped with stainless steel racks and cryoboxes (-B). Ideal for systematic storage of large quantities of cryovials or blood bags - in either vapor or liquid phase.

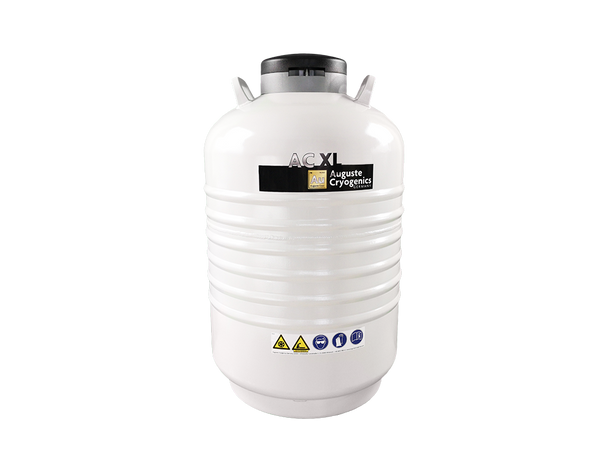

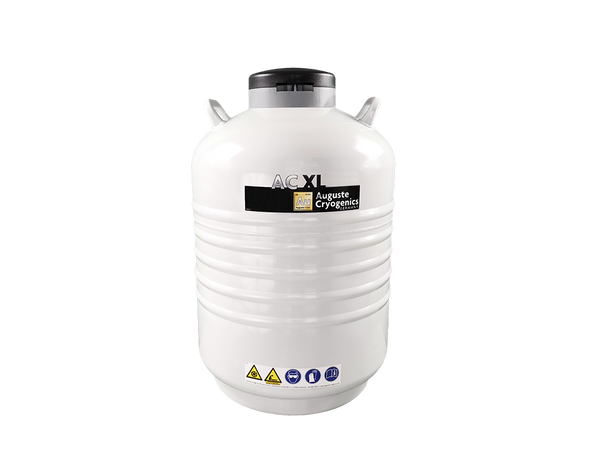

T-Models
Specially reinforced aluminum containers designed explicitly for transporting stored samples. They comply with ADR regulations for hazardous goods transport by road and rail.
Example: AC L20-S (standard) and AC L20T-S (T-version).

AC FREEZER Series
For exceptionally large sample volumes: robust stainless steel high-capacity freezers with capacities of 430 L, 480 L, or 860 L - suitable for vapor or liquid phase storage. Ideal for research institutions, biobanks, and universities requiring high-capacity solutions.

If you need assistance selecting the appropriate container, please consult our guide “Cryogenic Cell Storage: The Guide to Selecting the Right Container” or contact us directly.

MDR – Medical Device Regulation (EU)
The Medical Device Regulation (MDR) defines harmonized requirements across Europe for products intended for medical applications. MDR-compliant nitrogen containers meet the highest standards in terms of safety, quality, and documentation, and are specifically designed for use in sensitive environments such as medical, laboratory, and research settings.
They offer verified reliability, compliant design, and full traceability throughout the entire product lifecycle.

The products and prices shown here do not apply to MDR (Medical Device) products. If you require an MDR-compliant product, please refer to the relevant product series or contact us directly.

#VIALS2mlCanister-180-168

Technical Data

AC L20-L	Part No. H-AAD1100073
LN2 capacity (liters)	20
Empty weight (kg)	9,5
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	675
Static evaporation rate (liters / day)	0,12
Static hold time (days)	168
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	12,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-180-175

Technical Data

AC L25-L	Part No. H-AAD1100001
LN2 capacity (liters)	25
Empty weight (kg)	10,7
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	705
Static evaporation rate (liters / day)	0,14
Static hold time (days)	175
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425765
Shipping volume (m3)	0,138
Weight including packaging (kg)	14,2

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-180-254

Technical Data

AC L30-L	Part No. H-AAD1100083
LN2 capacity (liters)	31,5
Empty weight (kg)	12,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	712
Static evaporation rate (liters / day)	0,12
Static hold time (days)	254
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-180-286

Technical Data

AC L35-L	Part No. H-AAD1100091
LN2 capacity (liters)	35,5
Empty weight (kg)	14,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,12
Static hold time (days)	286
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-180-109

Technical Data

AC L13-L	Part No. H-AAD1100065
LN2 capacity (liters)	13
Empty weight (kg)	6,3
Neck opening (mm)	50
Outside diameter (mm)	310
Total height (mm)	627
Static evaporation rate (liters / day)	0,12
Static hold time (days)	109
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	350350690
Shipping volume (m3)	0,085
Weight including packaging (kg)	9,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-180-209

Technical Data

AC L50T-L	Part No. H-AAD1100353
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-684-152

Technical Data

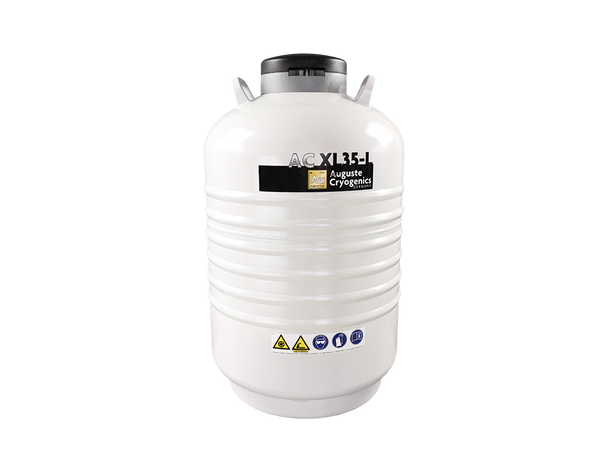

AC XL+35-L	Part No. H-AAD1100292
LN2 capacity (liters)	35
Empty weight (kg)	15,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,23
Static hold time (days)	152
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-684-97

Technical Data

AC 2XL+35-L (10)	Part No. H-AAD1100348
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	127
Outside diameter (mm)	462
Total height (mm)	748
Static evaporation rate (liters / day)	0,37
Static hold time (days)	97
Canister diameter (mm)	71
Canister height (mm)	276
Canister Number	10
Straw holding capacity 0,25 ml (-L)	12500
Straw holding capacity 0,5 ml (-L)	6250
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	500500940
Shipping volume (m3)	0,235
Weight including packaging (kg)	20,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 long canisters and 20 goblets

Download datasheet:

#VIALS2mlCanister-684-86

Technical Data

AC XL+20-L	Part No. H-AAD1100457
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,23
Static hold time (days)	86
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,5

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-684-130

Technical Data

AC 2XL47-L (10)	Part No. H-AAA1100319
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	72
Canister height (mm)	276
Canister Number	10
Straw holding capacity 0,25 ml (-L)	16400
Straw holding capacity 0,5 ml (-L)	8200
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 long canisters and 20 goblets

Download datasheet:

#VIALS2mlCanister-684-136

Technical Data

AC XL+30-L	Part No. H-AAD1100291
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,23
Static hold time (days)	136
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

Download datasheet:

#VIALS2mlCanister-1260-97

Technical Data

AC 2XL35-L	Part No. H-AAD1100095
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,37
Static hold time (days)	97
Canister diameter (mm)	97
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#VIALS2mlCanister-1260-145

Technical Data

AC 2XL50T-L	Part No. H-AAD1100098
LN2 capacity (liters)	50
Empty weight (kg)	17,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Number of canisters	6
Conister height (mm)	276
Canister diameter (mm)	97
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	yes
available as an MDR product	yes (optional)
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#VIALS2mlCanister-1300-130

Technical Data

AC 2XL47-L	Part No. H-AAD1100358
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	104
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1300
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#VIALS2mlRack-100-23

Technical Data

AC 2XL10-B	Part No. H-AAD1100044
LN2 capacity (liters)	10
Empty weight (kg)	6,3
Neck opening (mm)	125
Outside diameter (mm)	300
Total height (mm)	623
Static evaporation rate (liters / day)	0,43
Static hold time (days)	23
Racks	1
Dimensions of the racks (mm)	82*84
Dimensions of the cryo boxes (mm)	76*76
Floors per rack	4
2ml Vials capacity	100
ADR	yes
available as an MDR product	yes (optional)
Product dimensions (mm)	340340640
Shipping volume (m3)	0,071
Weight including packaging (kg)	7,6

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 1 rack and 4 cryoboxes (5x5)

#VIALS2mlRack-600-90

Technical Data

AC 2XL30-B	Part No. H-AAD1100051
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,35
Static hold time (days)	90
Racks	6
Dimensions of the racks (mm)	82*84
Dimensions of the cryo boxes (mm)	76*76
Floors per rack	4
2ml Vials capacity	600
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	4
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	22,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 24 cryoboxes (5x5)

#VIALS2mlRack-750-97

Technical Data

AC 2XL35-B	Part No. H-AAD1100052
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters/day)	0,36
Static hold time (days)	97
Racks	6
Dimensions of the racks (mm)	82*84
Dimensions of the cryo boxes (mm)	76*76
Floors per rack	5
2ml Vials capacity	750
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	4
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 30 cryoboxes (5x5)

#VIALS2mlRack-900-110

Technical Data

AC 2XL50T-B	Part No. H-AAD1100053
LN2 capacity (liters)	50
Empty weight (kg)	17,3
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,45
Static hold time (days)	110
Racks	6
Dimensions of the racks (mm)	82*84
Dimensions of the cryo boxes (mm)	76*76
Floors per rack	6
2ml Vials capacity	900
ADR	yes
available as an MDR product	yes (optional)
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,4

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 36 cryoboxes (5x5)

#VIALS2mlRack-1110-130

Technical Data

AC 2XL47-B	Part No. H-AAD1100320
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters/day)	0,36
Static hold time (days)	130
Racks	6
Dimensions of the racks (mm)	105*100
Dimensions of the cryo boxes (mm)	98 mm round
Floors per rack	5
2ml Vials capacity	1110
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 30 cryoboxes (round)

#VIALS2mlRack-2400-73

Technical Data

AC 3XL65-B	Part No. H-AAD1100054
LN2 capacity (liters)	65
Empty weight (kg)	38,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	729
Static evaporation rate (liters/day)	0,89
Static hold time (days)	73
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	4
2ml Vials capacity	2400
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	120
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	2
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	96
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	780780905
Shipping volume (m3)	0,551
Weight including packaging (kg)	60,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 24 cryoboxes (10x10)

#VIALS2mlRack-3000-98

Technical Data

AC 3XL95-B	Part No. H-AAD1100055
LN2 capacity (liters)	95
Empty weight (kg)	41,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	774
Static evaporation rate (liters/day)	0,97
Static hold time (days)	98
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	5
2ml Vials capacity	3000
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	120
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	2
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	96
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	780780965
Shipping volume (m3)	0,587
Weight including packaging (kg)	65,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 30 cryoboxes (10x10)

#VIALS2mlRack-3600-122

Technical Data

AC 3XL115-B	Part No. H-AAD1100056
LN2 capacity (liters)	115
Empty weight (kg)	42,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	846
Static evaporation rate (liters/day)	0,94
Static hold time (days)	122
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	6
2ml Vials capacity	3600
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	3
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	180
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	3
50 ml boxes per level (multi)
50 ml blood bag (multi)	144
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801025
Shipping volume (m3)	0,624
Weight including packaging (kg)	69,2

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 36 cryoboxes (10x10)

#VIALS2mlRack-4800-151

Technical Data

AC 3XL145-B	Part No. H-AAD1100057
LN2 capacity (liters)	145
Empty weight (kg)	48,9
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	973
Static evaporation rate (liters/day)	0,96
Static hold time (days)	151
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	8
2ml Vials capacity	4800
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	4
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	240
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	4
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	192
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801145
Shipping volume (m3)	0,697
Weight including packaging (kg)	80,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 48 cryoboxes (10x10)

#VIALS2mlRack-6000-184

Technical Data

AC 3XL175-B	Part No. H-AAD1100058
LN2 capacity (liters)	175
Empty weight (kg)	53,8
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	1078
Static evaporation rate (liters/day)	0,95
Static hold time (days)	184
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	10
2ml Vials capacity	6000
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	5
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	300
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	5
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	240
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801275
Shipping volume (m3)	0,776
Weight including packaging (kg)	89,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 60 cryoboxes (10x10)

#VIALS2mlRack-16900-NA

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.

Technical Data

AC BIO 430	Part No. AC BIO 430
LN2 capacity (liters)	430
LN2 fill height [mm]	135
LN2 value below the base plate [l]	40
Outside diameter (mm)	800
Total height (mm)	1,342
Usable height [mm]	750
Neck opening (mm)	317
Empty weight (kg) (without ICS**)	195
Static evaporation rate (liters / day)	9
Static hold time (days)
Number of castors	5
Number of storage carousels	1
Number of racks	12+12
Straw holding capacity 0,25 ml	117.800
Straw holding capacity 0,5 ml	52.440
2ml Vials capacity	16.900

with box to accommodate the piping and valves
without storage system
no MDD
Space for 52 tubes with 70mm
diameter and a maximum height from 747mm fits into the AC BIO430 (tubes are not included)
260 Goblets with 65mm diameter (canisters are not included)

Function:

The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.

Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.

The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.

#VIALS2mlRack-37700-NA

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.

Technical Data

AC BIO 860	Part No. AC BIO 860
LN2 capacity (liters)	860
LN2 fill height [mm]	180
LN2 value below the base plate [l]
Outside diameter (mm)	1150
Total height (mm)	1597
Usable height [mm]	740
Neck opening (mm)	446
Empty weight (kg) (without ICS**)	417
Static evaporation rate (liters / day)	9
Static hold time (days)
Number of castors	5
Number of storage carousels	1
Number of racks
Straw holding capacity 0,25 ml	186.000
Straw holding capacity 0,5 ml	82.800
2ml Vials capacity	37.700

with box to accommodate the piping and valves
without storage system
no MDD

Function:

The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.

Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.

The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.

#STRAWS025ml-05ml-204-90-28

Technical Data

AC L2-S (1)	Part No. H-AAD1100010
LN2 capacity (liters)	2
Empty weight (kg)	2,8
Neck opening (mm)	30
Outside diameter (mm)	223
Total height (mm)	407
Static evaporation rate (liters / day)	0,07
Static hold time (days)	28
Canister diameter (mm)	19
Canister height (mm)	120
Canister Number	3
Straw holding capacity 0,25 ml (-S)	204
Straw holding capacity 0,5 ml (-S)	90
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	260260465
Shipping volume (m3)	0,031
Weight including packaging (kg)	4,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 3 short canisters

#STRAWS025ml-05ml-1788-792-168

Technical Data

AC L20-S	Part No. H-AAD1100072
LN2 capacity (liters)	20
Empty weight (kg)	9,5
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	675
Static evaporation rate (liters / day)	0,12
Static hold time (days)	168
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	12,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-175

Technical Data

AC L25-S	Part No. H-AAD1100077
LN2 capacity (liters)	25
Empty weight (kg)	10,7
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	705
Static evaporation rate (liters / day)	0,14
Static hold time (days)	175
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425765
Shipping volume (m3)	0,138
Weight including packaging (kg)	14,2

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-254

Technical Data

AC L30-S	Part No. H-AAD1100082
LN2 capacity (liters)	31,5
Empty weight (kg)	12,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	712
Static evaporation rate (liters / day)	0,12
Static hold time (days)	254
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-286

Technical Data

AC L35-S	Part No. H-AAD1100251
LN2 capacity (liters)	35,5
Empty weight (kg)	14,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,12
Static hold time (days)	286
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-109

Technical Data

AC L13-S	Part No. H-AAD1100299
LN2 capacity (liters)	13
Empty weight (kg)	6,3
Neck opening (mm)	50
Outside diameter (mm)	310
Total height (mm)	627
Static evaporation rate (liters / day)	0,12
Static hold time (days)	109
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	350350690
Shipping volume (m3)	0,085
Weight including packaging (kg)	9,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-209

Technical Data

AC L50T-S	Part No. H-AAD1100107
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-86

Technical Data

AC L10-S	Part No. H-AAD1100007
LN2 capacity (liters)	10
Empty weight (kg)	6,1
Neck opening (mm)	50
Outside diameter (mm)	300
Total height (mm)	552
Static evaporation rate (liters / day)	0,12
Static hold time (days)	86
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	340340615
Shipping volume (m3)	0,071
Weight including packaging (kg)	7,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-26

Technical Data

AC L3-S	Part No. H-AAD1100011
LN2 capacity (liters)	3
Empty weight (kg)	3,1
Neck opening (mm)	50
Outside diameter (mm)	223
Total height (mm)	438
Static evaporation rate (liters / day)	0,12
Static hold time (days)	26
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	270270510
Shipping volume (m3)	0,037
Weight including packaging (kg)	4,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-52

Technical Data

AC L6-S	Part No. H-AAD1100061
LN2 capacity (liters)	6
Empty weight (kg)	4,8
Neck opening (mm)	50
Outside diameter (mm)	300
Total height (mm)	496
Static evaporation rate (liters / day)	0,12
Static hold time (days)	52
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	340340555
Shipping volume (m3)	0,064
Weight including packaging (kg)	7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-1788-792-134

Technical Data

AC L15-S	Part No. H-AAD1100067
LN2 capacity (liters)	16
Empty weight (kg)	8,5
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	600
Static evaporation rate (liters / day)	0,12
Static hold time (days)	134
Canister diameter (mm)	38
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	1788
Straw holding capacity 0,5 ml (-S)	792
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425655
Shipping volume (m3)	0,118
Weight including packaging (kg)	11,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-LongCanister2932-1284-168

Technical Data

AC L20-L	Part No. H-AAD1100073
LN2 capacity (liters)	20
Empty weight (kg)	9,5
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	675
Static evaporation rate (liters / day)	0,12
Static hold time (days)	168
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	12,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister2932-1284-175

Technical Data

AC L25-L	Part No. H-AAD1100001
LN2 capacity (liters)	25
Empty weight (kg)	10,7
Neck opening (mm)	50
Outside diameter (mm)	394
Total height (mm)	705
Static evaporation rate (liters / day)	0,14
Static hold time (days)	175
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425765
Shipping volume (m3)	0,138
Weight including packaging (kg)	14,2

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister2932-1284-254

Technical Data

AC L30-L	Part No. H-AAD1100083
LN2 capacity (liters)	31,5
Empty weight (kg)	12,9
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	712
Static evaporation rate (liters / day)	0,12
Static hold time (days)	254
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister2932-1284-286

Technical Data

AC L35-L	Part No. H-AAD1100091
LN2 capacity (liters)	35,5
Empty weight (kg)	14,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,12
Static hold time (days)	286
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	18,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister2932-1284-109

Technical Data

AC L13-L	Part No. H-AAD1100065
LN2 capacity (liters)	13
Empty weight (kg)	6,3
Neck opening (mm)	50
Outside diameter (mm)	310
Total height (mm)	627
Static evaporation rate (liters / day)	0,12
Static hold time (days)	109
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	350350690
Shipping volume (m3)	0,085
Weight including packaging (kg)	9,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister2932-1284-209

Technical Data

AC L50T-L	Part No. H-AAD1100353
LN2 capacity (liters)	50
Empty weight (kg)	17,2
Neck opening (mm)	50
Outside diameter (mm)	462
Total height (mm)	825
Static evaporation rate (liters / day)	0,24
Static hold time (days)	209
Canister diameter (mm)	38
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	2932
Straw holding capacity 0,5 ml (-L)	1284
2ml Vials capacity	180
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	21,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-5022-2244-44

Technical Data

AC XL+10-S	Part No. H-AAD1100288
LN2 capacity (liters)	10
Empty weight (kg)	6,2
Neck opening (mm)	91
Outside diameter (mm)	300
Total height (mm)	623
Static evaporation rate (liters / day)	0,23
Static hold time (days)	44
Canister diameter (mm)	63
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5022
Straw holding capacity 0,5 ml (-S)	2244
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	340x340x635
Shipping volume (m3)	0,071
Weight including packaging (kg)	9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5261-2350-45

Technical Data

AC XL+11-S	Part No. H-AAD1100461
LN2 capacity (liters)	11
Empty weight (kg)	7,3
Neck opening (mm)	90
Outside diameter (mm)	384
Total height (mm)	420
Static evaporation rate (liters / day)	0,23
Static hold time (days)	45
Canister diameter (mm)	66
Canister height (mm)	110
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5261
Straw holding capacity 0,5 ml (-S)	2350
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	420420610
Shipping volume (m3)	0,088
Weight including packaging (kg)	8,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5580-2493-152

Technical Data

AC XL+35-S	Part No. H-AAD1100459
LN2 capacity (liters)	35
Empty weight (kg)	15,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,23
Static hold time (days)	152
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,6

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5580-2493-86

Technical Data

AC XL+20-S	Part No. H-AAD1100290
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,23
Static hold time (days)	86
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5580-2493-136

Technical Data

AC XL+30-S	Part No. H-AAD1100458
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,23
Static hold time (days)	136
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	5580
Straw holding capacity 0,5 ml (-S)	2493
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,6

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5580-2493-65

Technical Data

AC XL+15-S	Part No. H-AAD1100289
LN2 capacity (liters)	15
Empty weight (kg)	8,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	593
Static evaporation rate (liters / day)	0,23
Static hold time (days)	65
Canister diameter (mm)	70
Canister height (mm)	120
Canister Number	6
Sequin capacity canister 120 mm (-S) 0,25 ml	5580
Sequin capacity canister 120 mm (-S) 0,5 ml	2493
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425655
Shipping volume (m3)	0,118
Weight including packaging (kg)	11,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-5978-2671-45

Technical Data

AC XL+11-S (10)	Part No. H-AAD1100456
LN2 capacity (liters)	11
Empty weight (kg)	7,3
Neck opening (mm)	90
Outside diameter (mm)	384
Total height (mm)	420
Static evaporation rate (liters / day)	0,23
Static hold time (days)	45
Canister diameter (mm)	45
Canister height (mm)	110
Canister Number	10
Straw holding capacity 0,25 ml (-S)	5978
Straw holding capacity 0,5 ml (-S)	2671
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	420420610
Shipping volume (m3)	0,088
Weight including packaging (kg)	8,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 short canisters

#STRAWS025ml-05ml-LongCanister9400-4026-152

Technical Data

AC XL+35-L	Part No. H-AAD1100292
LN2 capacity (liters)	35
Empty weight (kg)	15,5
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,23
Static hold time (days)	152
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister9400-4026-86

Technical Data

AC XL+20-L	Part No. H-AAD1100457
LN2 capacity (liters)	20
Empty weight (kg)	9,6
Neck opening (mm)	91
Outside diameter (mm)	394
Total height (mm)	678
Static evaporation rate (liters / day)	0,23
Static hold time (days)	86
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	425425735
Shipping volume (m3)	0,133
Weight including packaging (kg)	13,5

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister9400-4026-136

Technical Data

AC XL+30-L	Part No. H-AAD1100291
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	91
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,23
Static hold time (days)	136
Canister diameter (mm)	70
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	9400
Straw holding capacity 0,5 ml (-L)	4026
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	15,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-6250-3125-35

Technical Data

AC 2XL15T-S (10)	Part No. H-AAD1100539
LN2 capacity (liters)	15
Empty weight (kg)
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	480
Static evaporation rate (liters / day)
Static hold time (days)	35
Canister diameter (mm)	70
Canister height (mm)	110
Canister Number	10
Straw holding capacity 0,25 ml (-S)	6250
Straw holding capacity 0,5 ml (-S)	3125
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	490490660
Shipping volume (m3)
Weight including packaging (kg)	12,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 short canisters

Note: The product image is a sample illustration.

#STRAWS025ml-05ml-11640-5124-90

Technical Data

AC 2XL30-S	Part No. H-AAD1100088
LN2 capacity (liters)	31,5
Empty weight (kg)	13
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	717
Static evaporation rate (liters / day)	0,35
Static hold time (days)	90
Canister diameter (mm)	97
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	11640
Straw holding capacity 0,5 ml (-S)	5124
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480900
Shipping volume (m3)	0,207
Weight including packaging (kg)	17,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-11952-5124-97

Technical Data

AC 2XL35-S	Part No. H-AAD1100094
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,37
Static hold time (days)	97
Canister diameter (mm)	97
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	11952
Straw holding capacity 0,5 ml (-S)	5124
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-11952-5124-130

Technical Data

AC 2XL47-S	Part No. H-AAD100359
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	104
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	11952
Straw holding capacity 0,5 ml (-S)	5124
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-6250-3125-130

Technical Data

AC 2XL47-S (10)	Part No. H-AAD1100497
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	72
Canister height (mm)	120
Canister Number	10
Straw holding capacity 0,25 ml (-S)	6250
Straw holding capacity 0,5 ml (-S)	3125
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 short canisters

#STRAWS025ml-05ml-11952-5124-145

Technical Data

AC 2XL50T-S	Part No. H-AAD1100097
LN2 capacity (liters)	50
Empty weight (kg)	17,3
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Canister diameter (mm)	97
Canister height (mm)	120
Canister Number	6
Straw holding capacity 0,25 ml (-S)	11952
Straw holding capacity 0,5 ml (-S)	5124
ADR	yes
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 short canisters

#STRAWS025ml-05ml-LongCanister12500-6250-97

Technical Data

AC 2XL+35-L (10)	Part No. H-AAD1100348
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	127
Outside diameter (mm)	462
Total height (mm)	748
Static evaporation rate (liters / day)	0,37
Static hold time (days)	97
Canister diameter (mm)	71
Canister height (mm)	276
Canister Number	10
Straw holding capacity 0,25 ml (-L)	12500
Straw holding capacity 0,5 ml (-L)	6250
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	500500940
Shipping volume (m3)	0,235
Weight including packaging (kg)	20,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 long canisters and 20 goblets

#STRAWS025ml-05ml-LongCanister16400-8200-130

Technical Data

AC 2XL47-L (10)	Part No. H-AAA1100319
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	72
Canister height (mm)	276
Canister Number	10
Straw holding capacity 0,25 ml (-L)	16400
Straw holding capacity 0,5 ml (-L)	8200
2ml Vials capacity	684
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 10 long canisters and 20 goblets

#STRAWS025ml-05ml-LongCanister19944-9048-97

Technical Data

AC 2XL35-L	Part No. H-AAD1100095
LN2 capacity (liters)	35,5
Empty weight (kg)	14,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	758
Static evaporation rate (liters / day)	0,37
Static hold time (days)	97
Canister diameter (mm)	97
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	480480915
Shipping volume (m3)	0,211
Weight including packaging (kg)	19,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister19944-9048-130

Technical Data

AC 2XL47-L	Part No. H-AAD1100358
LN2 capacity (liters)	47
Empty weight (kg)	18,2
Neck opening (mm)	127
Outside diameter (mm)	508
Total height (mm)	770
Static evaporation rate (liters / day)	0,36
Static hold time (days)	130
Canister diameter (mm)	104
Canister height (mm)	276
Canister Number	6
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1300
ADR	no
available as an MDR product	yes (optional)
Packing dimensions (mm)	540540890
Shipping volume (m3)	0,26
Weight including packaging (kg)	28,7

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-LongCanister19944-9048-145

Technical Data

AC 2XL50T-L	Part No. H-AAD1100098
LN2 capacity (liters)	50
Empty weight (kg)	17,6
Neck opening (mm)	125
Outside diameter (mm)	462
Total height (mm)	830
Static evaporation rate (liters / day)	0,36
Static hold time (days)	145
Number of canisters	6
Conister height (mm)	276
Canister diameter (mm)	97
Straw holding capacity 0,25 ml (-L)	19944
Straw holding capacity 0,5 ml (-L)	9048
2ml Vials capacity	1260
ADR	yes
available as an MDR product	yes (optional)
Product dimensions (mm)	480480985
Shipping volume (m3)	0,227
Weight including packaging (kg)	23,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 long canisters and 12 goblets

#STRAWS025ml-05ml-117800-52440-NA

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.

Technical Data

AC BIO 430	Part No. AC BIO 430
LN2 capacity (liters)	430
LN2 fill height [mm]	135
LN2 value below the base plate [l]	40
Outside diameter (mm)	800
Total height (mm)	1,342
Usable height [mm]	750
Neck opening (mm)	317
Empty weight (kg) (without ICS**)	195
Static evaporation rate (liters / day)	9
Static hold time (days)
Number of castors	5
Number of storage carousels	1
Number of racks	12+12
Straw holding capacity 0,25 ml	117.800
Straw holding capacity 0,5 ml	52.440
2ml Vials capacity	16.900

with box to accommodate the piping and valves
without storage system
no MDD
Space for 52 tubes with 70mm
diameter and a maximum height from 747mm fits into the AC BIO430 (tubes are not included)
260 Goblets with 65mm diameter (canisters are not included)

Function:

The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.

Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.

The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.

#STRAWS025ml-05ml-82460-36708-NA

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.

Technical Data

AC IVF 430	Part No. AC IVF 430
LN2 capacity (liters)	430
LN2 fill height [mm]	135
LN2 value below the base plate [l]	40
Outside diameter (mm)	800
Total height (mm)	1,342
Usable height [mm]	2x 370
Neck opening (mm)	317
Empty weight (kg) (without ICS**)	197
Static evaporation rate (liters / day)	9
Static hold time (days)
Number of castors	5
Number of storage carousels	2
Number of racks	9+12
Straw holding capacity 0,25 ml	82.460
Straw holding capacity 0,5 ml	36.708

two-storey carousel
with box to accommodate the piping and valves
without storage system
no MDD

Function:

The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.

Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.

The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.

#STRAWS025ml-05ml-186000-82800-NA

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.

Technical Data

AC BIO 860	Part No. AC BIO 860
LN2 capacity (liters)	860
LN2 fill height [mm]	180
LN2 value below the base plate [l]
Outside diameter (mm)	1150
Total height (mm)	1597
Usable height [mm]	740
Neck opening (mm)	446
Empty weight (kg) (without ICS**)	417
Static evaporation rate (liters / day)	9
Static hold time (days)
Number of castors	5
Number of storage carousels	1
Number of racks
Straw holding capacity 0,25 ml	186.000
Straw holding capacity 0,5 ml	82.800
2ml Vials capacity	37.700

with box to accommodate the piping and valves
without storage system
no MDD

Function:

The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.

Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.

The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.

#BAGS25ml-50ml-120-96-73

Technical Data

AC 3XL65-B	Part No. H-AAD1100054
LN2 capacity (liters)	65
Empty weight (kg)	38,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	729
Static evaporation rate (liters/day)	0,89
Static hold time (days)	73
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	4
2ml Vials capacity	2400
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	120
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	2
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	96
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	780780905
Shipping volume (m3)	0,551
Weight including packaging (kg)	60,8

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 24 cryoboxes (10x10)

#BAGS25ml-50ml-120-96-98

Technical Data

AC 3XL95-B	Part No. H-AAD1100055
LN2 capacity (liters)	95
Empty weight (kg)	41,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	774
Static evaporation rate (liters/day)	0,97
Static hold time (days)	98
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	5
2ml Vials capacity	3000
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	2
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	120
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	2
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	96
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	780780965
Shipping volume (m3)	0,587
Weight including packaging (kg)	65,9

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 30 cryoboxes (10x10)

#BAGS25ml-50ml-180-144-122

Technical Data

AC 3XL115-B	Part No. H-AAD1100056
LN2 capacity (liters)	115
Empty weight (kg)	42,3
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	846
Static evaporation rate (liters/day)	0,94
Static hold time (days)	122
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	6
2ml Vials capacity	3600
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	3
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	180
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	3
50 ml boxes per level (multi)
50 ml blood bag (multi)	144
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801025
Shipping volume (m3)	0,624
Weight including packaging (kg)	69,2

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 36 cryoboxes (10x10)

#BAGS25ml-50ml-240-192-151

Technical Data

AC 3XL145-B	Part No. H-AAD1100057
LN2 capacity (liters)	145
Empty weight (kg)	48,9
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	973
Static evaporation rate (liters/day)	0,96
Static hold time (days)	151
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	8
2ml Vials capacity	4800
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	4
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	240
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	4
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	192
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801145
Shipping volume (m3)	0,697
Weight including packaging (kg)	80,1

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 48 cryoboxes (10x10)

#BAGS25ml-50ml-300-240-184

Technical Data

AC 3XL175-B	Part No. H-AAD1100058
LN2 capacity (liters)	175
Empty weight (kg)	53,8
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	1078
Static evaporation rate (liters/day)	0,95
Static hold time (days)	184
Racks	6
Dimensions of the racks (mm)	142*144
Dimensions of the cryo boxes (mm)	134*134
Floors per rack	10
2ml Vials capacity	6000
25 ml blood bag racks (multi)	6
Levels per 25 ml blood bag rack (multi)	5
Boxes per level 25 ml (multi)	10
25 ml blood bag (multi)	300
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	5
50 ml boxes per level (multi)	8
50 ml blood bag (multi)	240
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801275
Shipping volume (m3)	0,776
Weight including packaging (kg)	89,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 racks and 60 cryoboxes (10x10)

#BAGS25ml-50ml-NA-252-184

Include 6 blood bag rack with 3 layers 252 cryoboxes used for 50ml blood bag, lockable cap

Technical Data

AC 3XL175-B50	Part No. H-AAD1100360
LN2 capacity (liters)	175
Empty weight (kg)	53,8
Neck opening (mm)	216
Outside diameter (mm)	681
Total height (mm)	1078
Static evaporation rate (liters/day)	0,95
Static hold time (days)	184
Racks	6
Dimensions of the racks (mm)	142*139
Dimensions of the cryo boxes (mm)	131*131
Floors per rack
Cryo-tubes
25 ml blood bag racks (multi)
Levels per 25 ml blood bag rack (multi)
Boxes per level 25 ml (multi)
25 ml blood bag (multi)
50 ml blood bag racks (multi)	6
Levels per 50 ml blood bag rack (multi)	3
50 ml boxes per level (multi)	14
50 ml blood bag (multi)	252
ADR	no
available as an MDR product	yes (optional)
Product dimensions (mm)	7807801275
Shipping volume (m3)	0,776
Weight including packaging (kg)	89,3

* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

Including 6 blood bag racks and 252 cryoboxes used for 50ml blood bag

#All

Download datasheet:

WARENKORB

Titel

Produkte

ZELL LAGERUNG

ZELL TRANSPORT

Kryogene digitale Füllstandsanzeige C-Stic SGB

Kryogenschlauch

CRYOKIT HANDSCHUHE

Transportwagen für Kryoproben
