The vessels in the AC Liquid Cylinders Series are storage and transport cylinders for liquefied gas. The product line represent an important component of the Auguste Cryogenics product portfolio. The trusted products have been successfully operating throughout Europe and all over the world for decades.

The inner and outer vessel are constructed of top grade stainless steel. The ultra-low evaporation rates are ensured by a special super insulation and the Auguste Cryogenics GOLD Standard vacuum technology.

Of course all cylinders of the Auguste Cryogenics AC Liquid Cylinder Series comply with the European Directive 2010/35/EU for transportable pressure equipment (TPED), making them flexible and valuable elements in the liquefied gases supply chain in various industrial, medical, research and food production applications.

Auguste Cryogenics‘ AC Liquid Cylinders come in several sizes from 70 to 240 liters net volume and are available without or with pressure building. They are transportable units, designed and built to rugged construction standards that are intended to be carried full. They are engineered for either low-pressure applications of cryogenic filling and liquid dispensing or high-pressure gas distribution. All units feature quick and easy liquid withdrawal.

The road-transportable cylinders are also available equipped with an automatic pressurebuilding circuit. There is also an integrated economizer circuit that helps reduce and control overflow gas consumption. This is designed in order to help conserve gas during low demand periods and build up pressure quickly for peak demand.

The Auguste Cryogenic AC series is the industry standard for gas liquid cylinder performance and feature Auguste Cryogenics‘ GOLD Standard vacuum technology.

Low pressure liquid cylinders
These cylinders are transportable units, designed and built to rugged construction standards that are intended to be carried full of product. These vessels are available with or without a built-in pressure building coil. All units feature quick and easy liquid withdrawal.

Medium and high pressure liquid cylinders
Each vessel in this series of road-transportable cylinders features a pressure building circuit. There is also an integrated economizer circuit that helps reduce and control overflow gas consumption. The optimized design helps to conserve boil off gas during low demand periods and build up pressure quickly for peak demand.

The Auguste Cryogenic AC line represents the GOLD standard for industrial gas liquid cylinder performance.

	Liquid Cylinder Product Line General Technical Data
Inner and outer vessel	Stainless steel
Insulation	Multilayer super insulation and high quality vaccuum
Approval	TPED 2010/35/EU
Safety valve set to \| Max. allowed working pressure (MAWP)	1.5 \| 10 bar for N₂, O₂, Ar 15.9 \| 15.9 bar for N₂, O₂, Ar 24 \| 24 bar for N₂, O₂, Ar, CO₂ and N₂O
End fittings	CGA 295 for N₂, Ar, CO₂ and N₂O \| CGA 540 for O₂

Technical Data

AC 240 PB	Part No. ALC240-P
Gross capacity (Liter)	252
Net capacity (Liter)	240
Work. pressure std. \| max. (bar)	1.5 \| 10
Evaporation on rate (N₂/%/day)	1.4
Liquid withdrawal rate (l/min)	20
Weight empty (kg)	146
Weight ﬁlled w. N₂ (kg)	340
Height (mm)	1535
Diameter(mm)	660
Castors	5
Auto. pressure building	Set 1 Bar
Packing dimensions (mm)	7507501685
Shipping volume (m3)	0,948
Weight including packaging (kg)	166

Download Datasheet

Specifications

Gross capacity (Liter): 252
Net capacity (Liter): 240
Work. pressure std. | max. (bar): 1.5 | 10
Evaporation on rate (N₂/%/day): 1.4
Liquid withdrawal rate (l/min): 20
Weight empty (kg): 146
Weight ﬁlled w. N₂ (kg): 340

SHOPPING CART

title

Products

AC 240 PB

AC 2XL+35 (10)

AC 2XL+35-L (10)

AC 2XL10

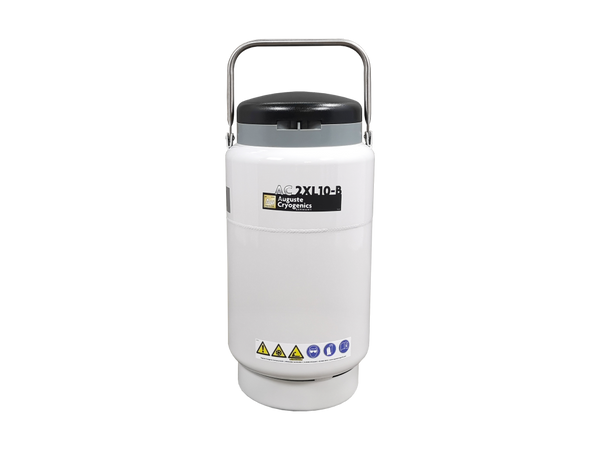

AC 2XL10-B
