The aluminum vessels of the L | XL | XL + | 2XL - series from the Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratories and technology.
The containers of the Auguste Cryogenics Medical Family are particularly characterized by:
The vacuum-insulated aluminum containers of the Medical Family are therefore ideally suited for use in medical institutes, biological laboratories, institutes for artificial insemination and pharmaceutical facilities. Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.
With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products of this group were made for
long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.
The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.
The containers of the L, XL, XL +, and 2XL models differ primarily in their neck diameters of 50, 80, 90 and 125 mm. They are primarily intended for the storage of large quantities of biological material such as bovine semen in sterile tubes that are cooled in single or double canisters in the nitrogen-liquid phase.
AC Medical products, which are marked with a T-ID, are a specially reinforced version of the aluminum container and are specially intended for the transport of stored samples. These containers meet the requirements of the ADR guideline for the transport of these liquefied petroleum gas containers in the public road and rail network.

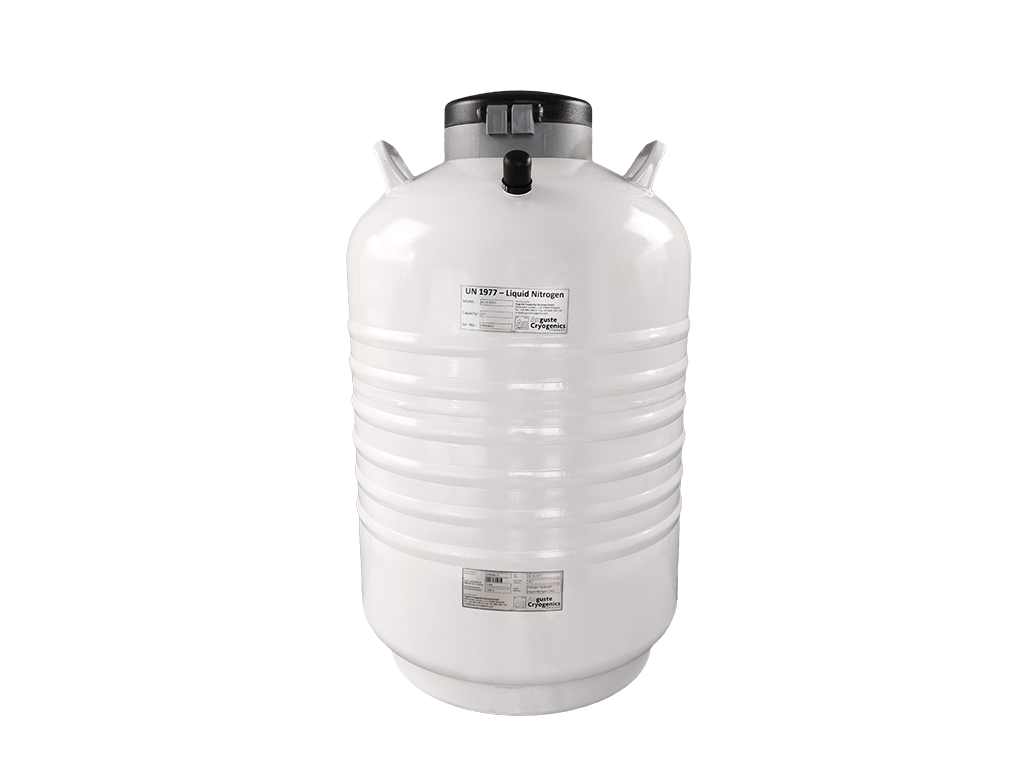

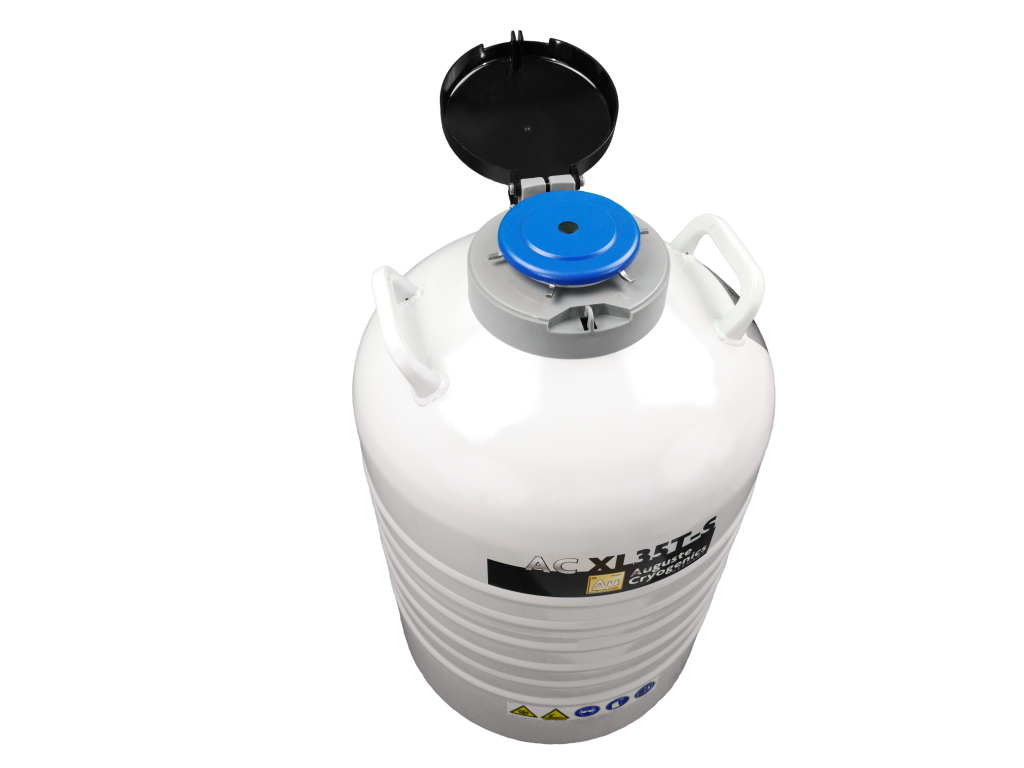

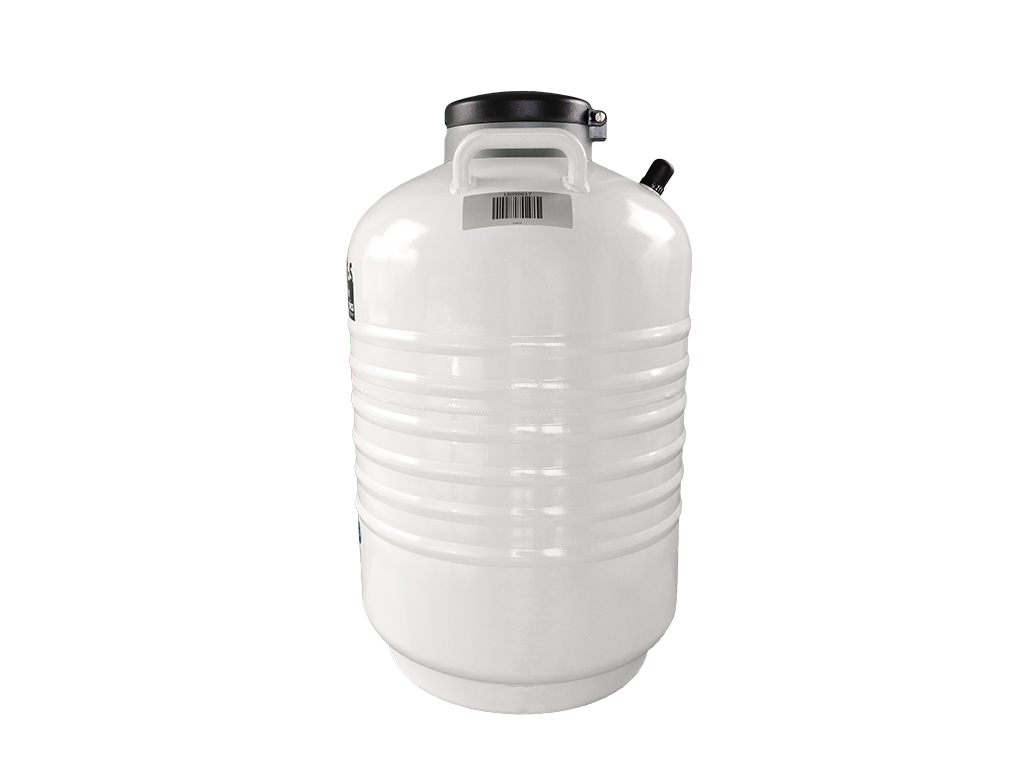

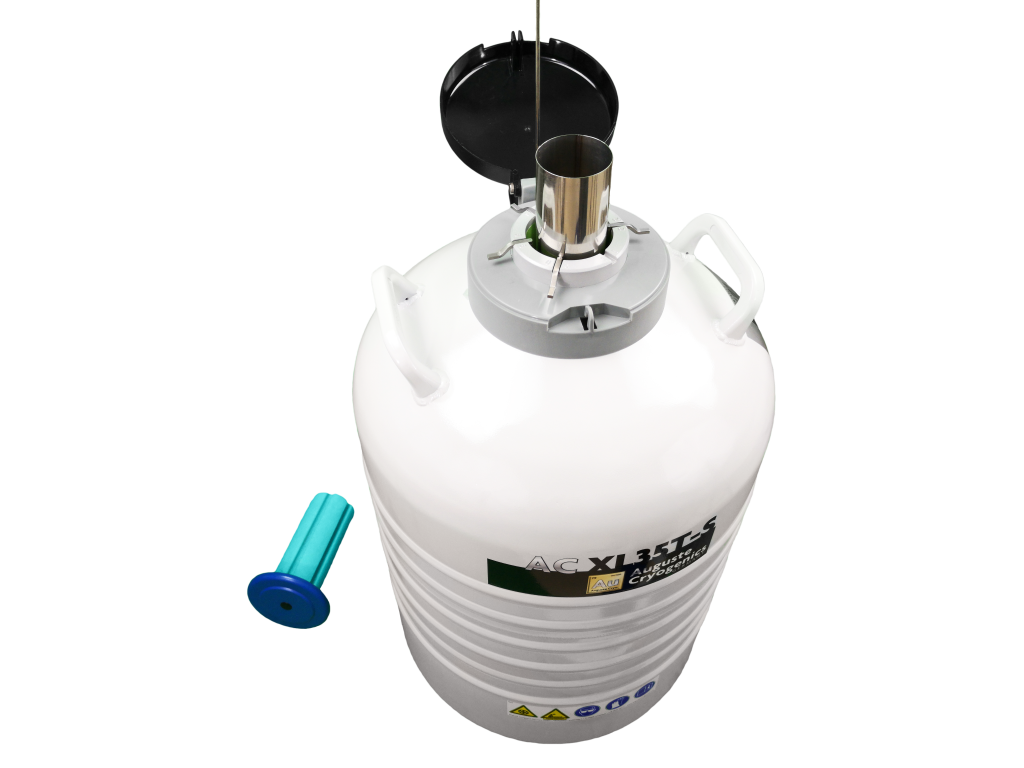

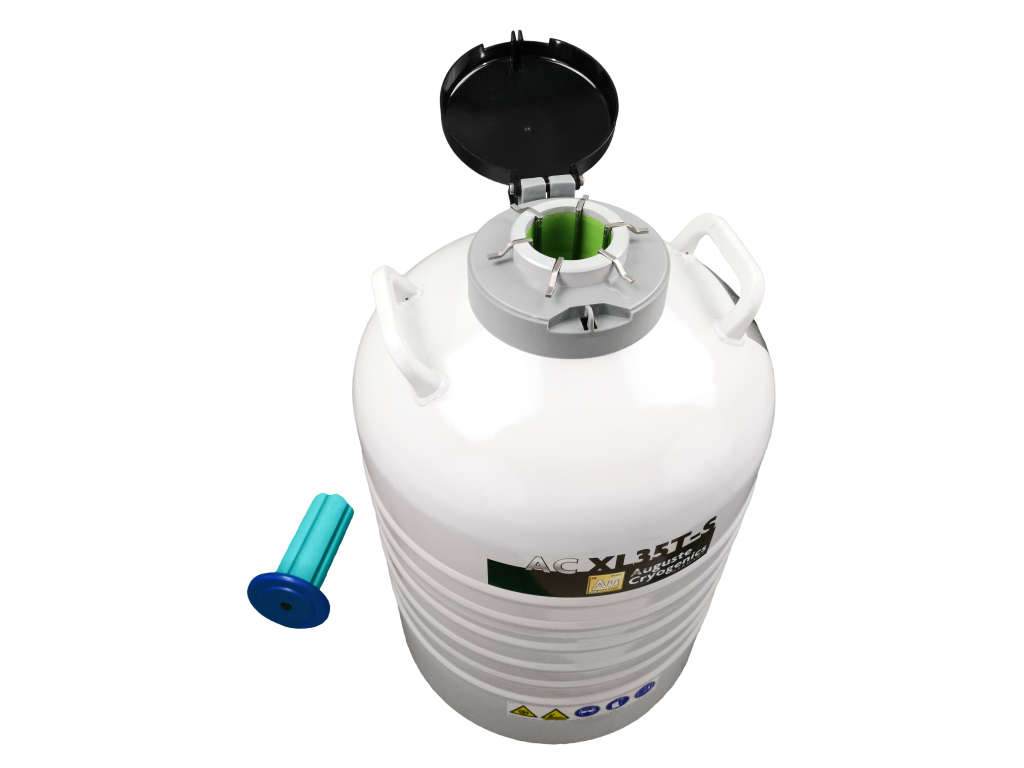

|AC XL35T-S||Part No. H-AAD1100006|
|LN2 capacity (liters)||35,5|
|Empty weight (kg)||15,2|

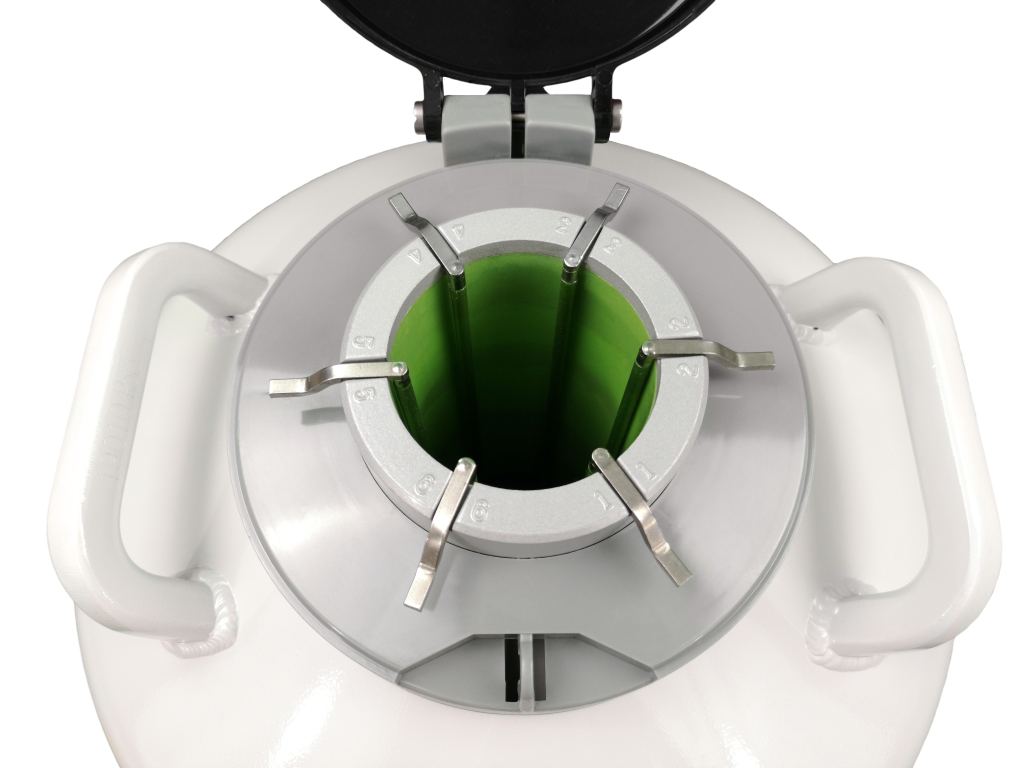

|Neck opening (mm)||80|
|Outside diameter (mm)||462|
|Total height (mm)||758|
|Static evaporation rate (liters / day)||0,3|
|Static hold time (days)||119|
|Canister diameter (mm)||63|
|Canister height (mm)||120|
|Straw holding capacity short canisters 0,25 ml||5022|
|Straw holding capacity short canisters 0,5 ml||2244|
|Straw holding capacity long canisters 0,25 ml|
|Straw holding capacity long canisters 0,5 ml|
|available as an MDD product|
|Packing dimensions (mm)||480*480*915|
|Shipping volume (m3)||0,211|
|Weight including packaging (kg)||20,6|
