The aluminum containers of the 2XL- | 3XL-B - series from Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratory and technology.
The containers of the Auguste Cryogenics Medical Family stand out off through:
• High portability thanks to its low weight and compact dimensions
• Long holding times, resulting in high economic efficiency
• large storage capacity
The vacuum-insulated aluminum containers of the Medical Family are thus ideally suited for use in medical institutes, biological laboratories, artificial insemination institutes and pharmaceutical facilities. Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.
With the AC Medical Family, Auguste Cryogenics presents its new product line vacuum-insulated aluminum container for transport and storage of nitrogen-cooled material. The products of this group were made for long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are depending on Design and equipment possible.
The containers of the AC Medical Family can be used in many ways - at insemination as well as in the medical and pharmaceutical field and for various industrial processes. Depending on the purpose and requirements biological material can be stored in the liquid or gas phase of the containers are stored.
The containers of the 2XL and 3XL-B models differ primarily due to their different neck diameters of 125 and 216 mm. you are primarily for the systematic storage of large quantities of biological material Material provided, the boxes in the stainless steel racks in the nitrogen liquid phase are cooled.
Technical Data

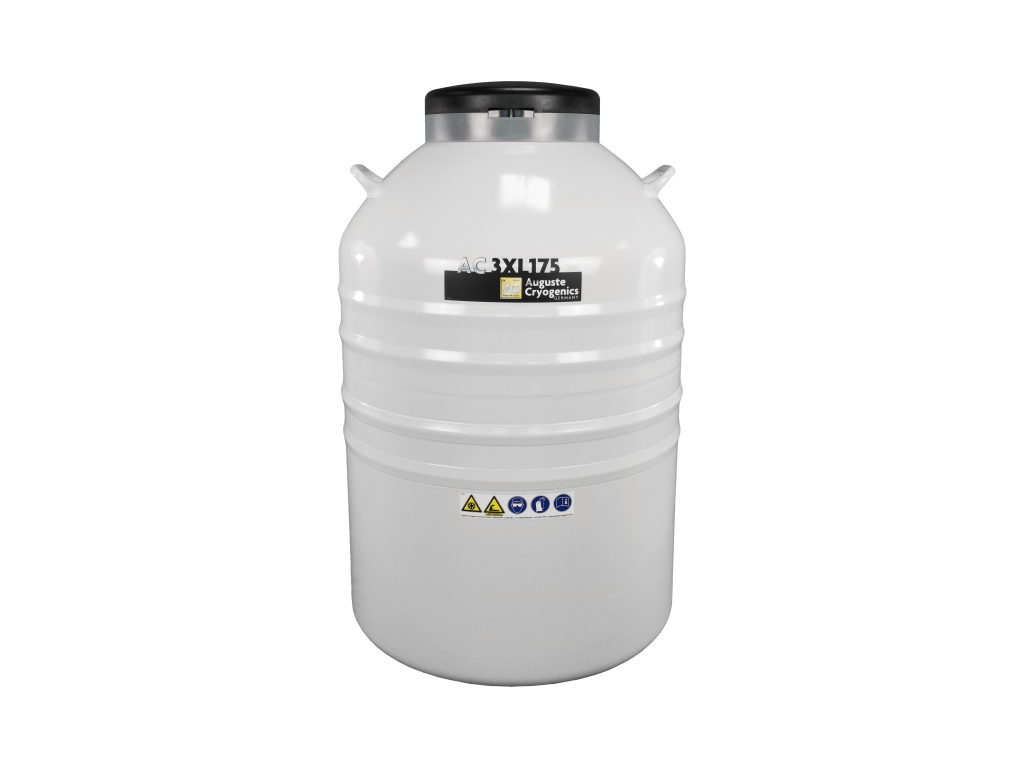

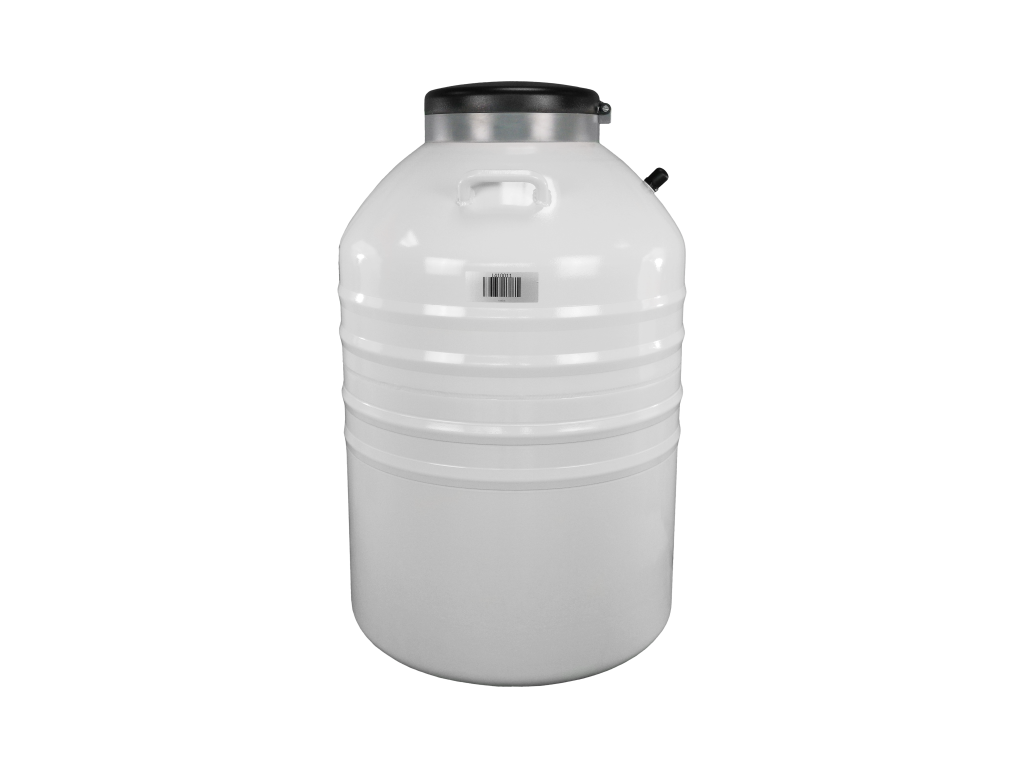

| AC 3XL175 | Part No. H-AAD1100301 |
|---|---|
| LN2 capacity (liters) | 175 |
| Empty weight (kg) | 53,8 |
| Neck opening (mm) | 216 |
| Outside diameter (mm) | 681 |
| Total height (mm) | 1078 |
| Static evaporation rate (liters/day) | 0,95 |
| Static hold time (days) | 184 |
| Racks | 0 |
| Dimensions of the racks (mm) | |
| Dimensions of the cryo boxes (mm) | |
| Floors per rack | |
| Cryo-tubes | |
| 25 ml blood bag racks (multi) | |
| Levels per 25 ml blood bag rack (multi) | |
| Boxes per level 25 ml (multi) | |
| 25 ml blood bag (multi) | |
| 50 ml blood bag racks (multi) | |
| Levels per 50 ml blood bag rack (multi) | |
| 50 ml boxes per level (multi) | |
| 50 ml blood bag (multi) | |
| ADR | no |
| available as an MDD product | yes |
| Product dimensions (mm) | 780*780*1275 |
| Shipping volume (m3) | 0,776 |
| Weight including packaging (kg) | 66,8 |
Download Datasheet
