820175 - AC Heavy-duty rubber castor for Liquid Cylinder series
AC Heavy-duty rubber castor for Liquid Cylinder series Key features of of heavy-duty rubber castor with brake: Wheel diameter 125mm Housing made of stainless steel Directional swivel wheel with total...
- Part number
- 820175
- Type
- Spare Parts Liquid Cylinders
- Vendor
- Auguste Cryogenics
Sales & service for
Product description

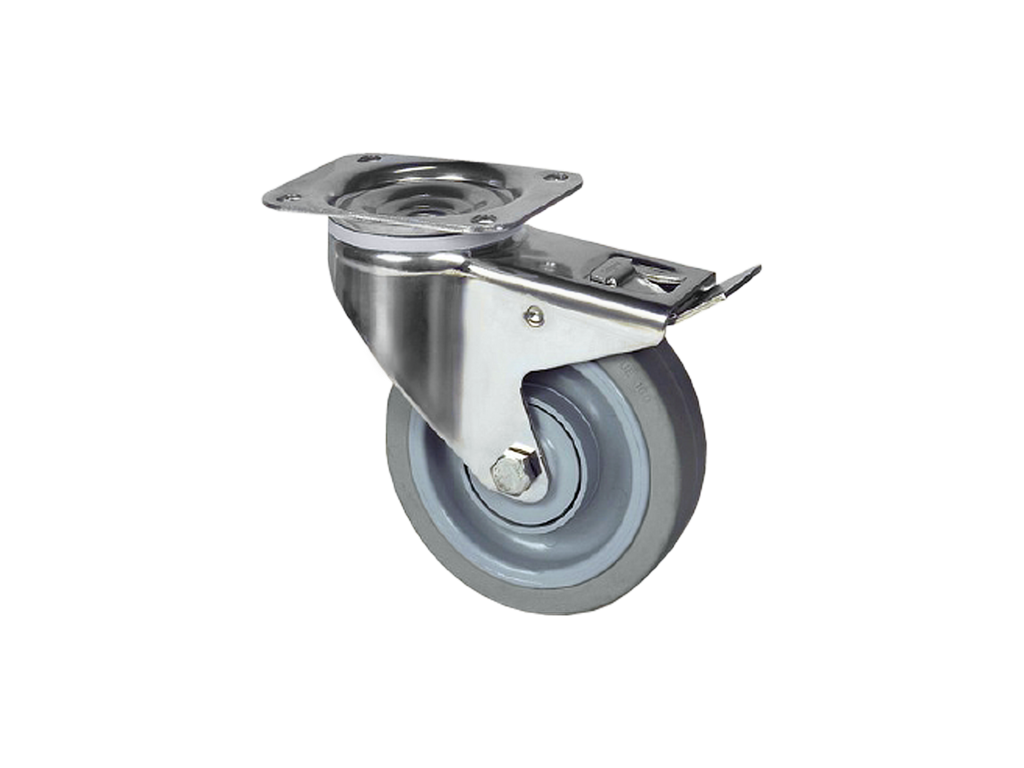

AC Heavy-duty rubber castor for Liquid Cylinder series
#WITHBRAKE
Key features of of heavy-duty rubber castor with brake:
- Wheel diameter 125mm
- Housing made of stainless steel
- Directional swivel wheel with total brake in the rear part of the wheel
- Fork made of stainless steel
- Double ball track in the swivel head
- Wheel axis secured with a screw and nut
- Clamping plate
- Wheel center made of polyamide
- Tread: elastic casing
- Non-marking
- With small anti-fiber covers
- Precision ball bearing
- Sealed
| Technical Data | Part No. H-TWA1100502 |
|---|---|
| Wheel diameter | 125 mm |
| Tread width | 40 mm |
| Board size | 105 x 85 mm |
| Plate hole spacing / plate hole | 80/77 x 60 mm |
| Open the board | 9 mm |
| Vyosenie | 40 mm |
| Wheel overhang | 242 mm |
| Total height | 155 mm |
| Temperature | -20 / +80 °C |
| Standard | EN 12532 |
| Weight | 1,219 kg |
| Turning radius | 102,5 mm |
| Tread hardness | Shore A 64 |
| Dynamic load capacity | 250 kg |
| Static load capacity | 500 kg |
Compatibility
Fits these vessels
Check the suffix of your model: -S takes short, -L takes long canisters.
