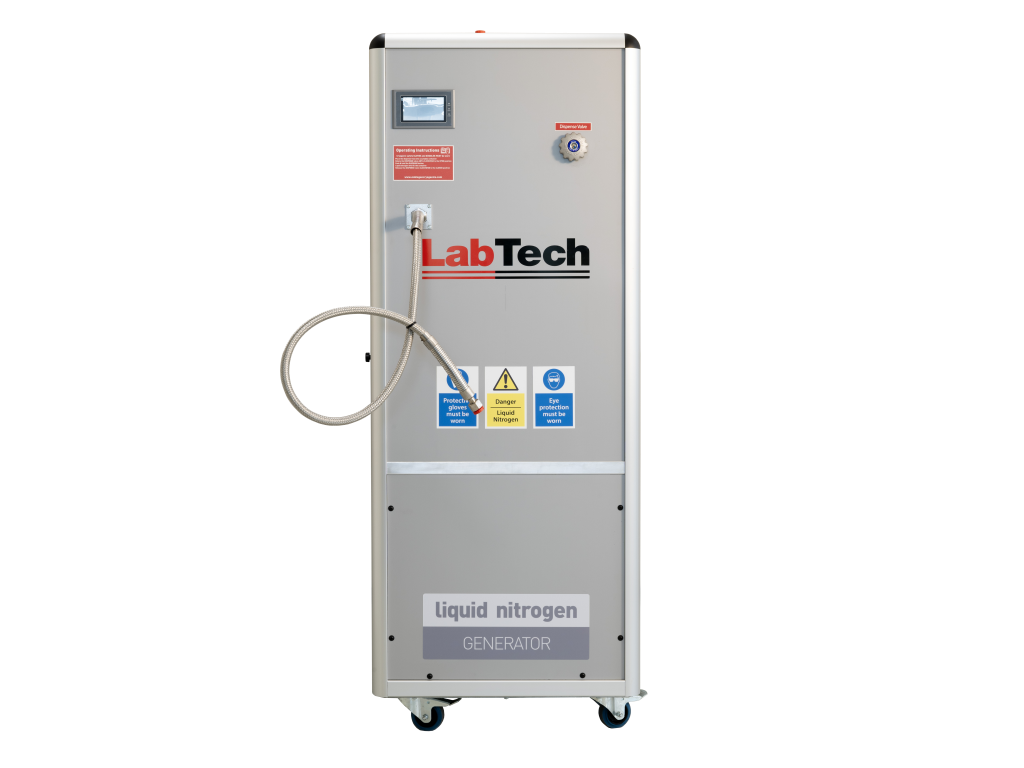

SKU: LLN10+ Liquid Nitrogen Generator
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Liquid Nitrogen Generator

€45,240.00

ADD TO WISHLIST

Vendor: LabTech
Product Type: ACCESSORIES
Barcode: LLN10+

Make your own high-quality liquid nitrogen, anywhere, anytime. On site liquid nitrogen generation is extremely easy. Experience first-hand the convenience of having the generator in your lab without delivery hassles. Never run out of liquid nitrogen.

Vapors released by liquid nitrogen, due to its very low boiling point (-196,79°C) that instantly transforms it into gaseous state in contact with air, attract everyone's curiosity but you must not be tricked as it can be very dangerous if not properly handled.

The technology has huge implications for industrial, medical and laboratory applications, removing the need for liquid nitrogen tanker deliveries, which as well as being inconvenient, drive up costs and create potential problems with evaporation and contamination. The control system used gives operators all the information necessary to ensure an efficient and consistent supply of liquid nitrogen and nitrogen gas are always available.

Extremely Easy to Use
Built-in Low Noise Air Compressor
Built-in Oxygen Analyzer with Alarm
PSA Technology
Vacuum Prevention System on Dewar
Built-in Dewar tank
Color Graphic Touch Screen
Low Noise Level

Technical Data

	LNG10	LNG20	LNG40	LNG80
Liquid Nitrogen Volume (L/day)	6 to 10	15 to 20	40 to 45 (boost function)	65 to 80 (boost function)
Built-in dewar capacity (L)	35	50 (optional 35)	100	210
Air compressor	Included	Included	Included	Included
Control system	Color graphic touch screen	Color graphic touch screen	Color graphic touch screen	Color graphic touch screen
Power supply	110-240V 50/60Hz	200-240V 50/60Hz	380-415V 50/60Hz	380-415V 50/60Hz
Power consumption (Kw)	1.5	3.0	4.0	7.0
Max altitude (mt)	Up to 2.000	Up to 2.000	Up to 2.000	Up to 2.000
Ambient temperature range (°C)	+4 to +32	+4 to +32	+4 to +50*	+4 to +50
Noise level (dBA)	<55	<60	<60	<65
Dimensions (LxWxH cm)	80x60x170	65x140x185	65x140x175	80x160x175
Weight (Kg)	240	350	350	450
Water cooled version	Not available	Not available	Available (LLN40)	Standard (not included)
Ordering information	LLN10+	LLN20AC (LLN20ACCOMP)	LLN40AC	LLN80

* Water cooled version

MAIN APPLICATIONS:

Cells (tumor, white blood, lymphocytes, platelets, bone marrow).
Cryopreservation of biological samples (e.g. organs, tissues, human and animal semen, fertilized eggs).
Cryotherapy (e.g. removal of skin abnormalities).
Bacteria, virus manipulation.
Superconductivity coolant.
Cryogenic insulation in oil industry (e.g. to freeze water and oil pipes when a valve is not available to block fluid flow to the work area).
Industries of different kinds (shrink-welding, CCD cameras, NMR spectrometers and MRI systems, high-field superconducting magnets, spacecraft thermal testing, shielding materials from oxygen exposure, controlled-evaporation or very low temperature reaction processes in chemistry, injecting nitrogen just before sealing or capping bottles or containers, freezing and transport of food products).
Livestock industries (cattle branding).
Avantgarde and molecular cuisine or gastronomy (instant freezing, ice cream, liquid nitrogen cocktails with "cauldron effect", food experiments and preparation).
