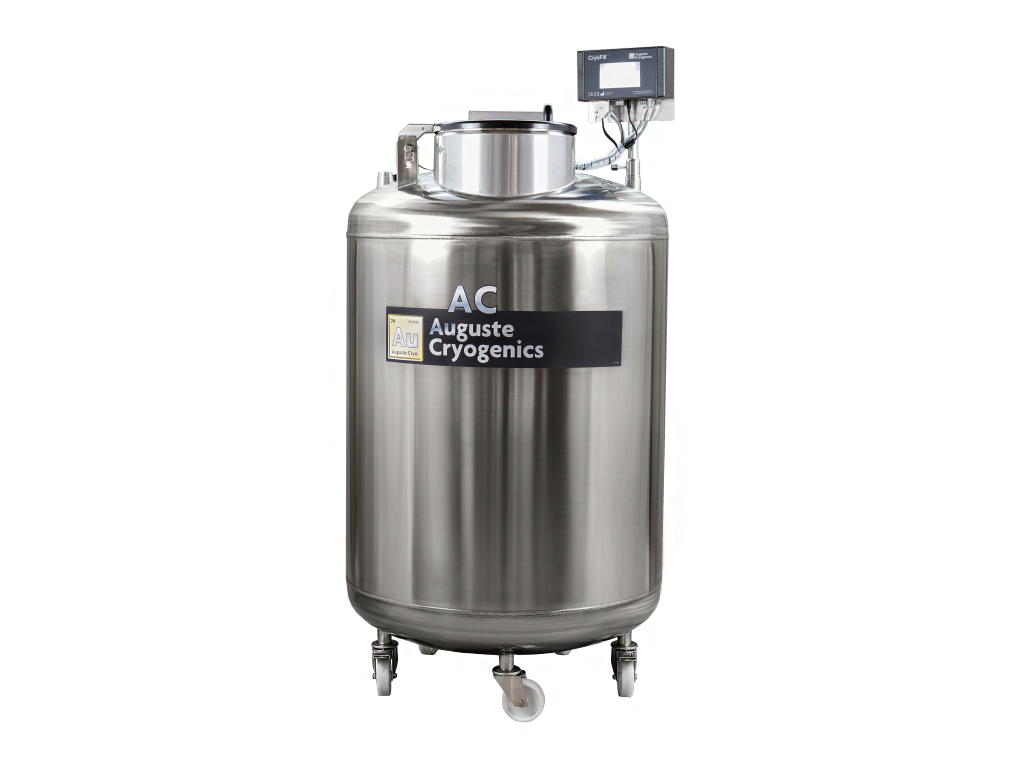

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.
The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running aluminum storage system on one level for the AC BIO series and two levels for the AC IVF series. The containers of both series are characterized by very low nitrogen consumption at a stable storage temperature, which almost reaches the cold level of liquid nitrogen even in the gas phase.

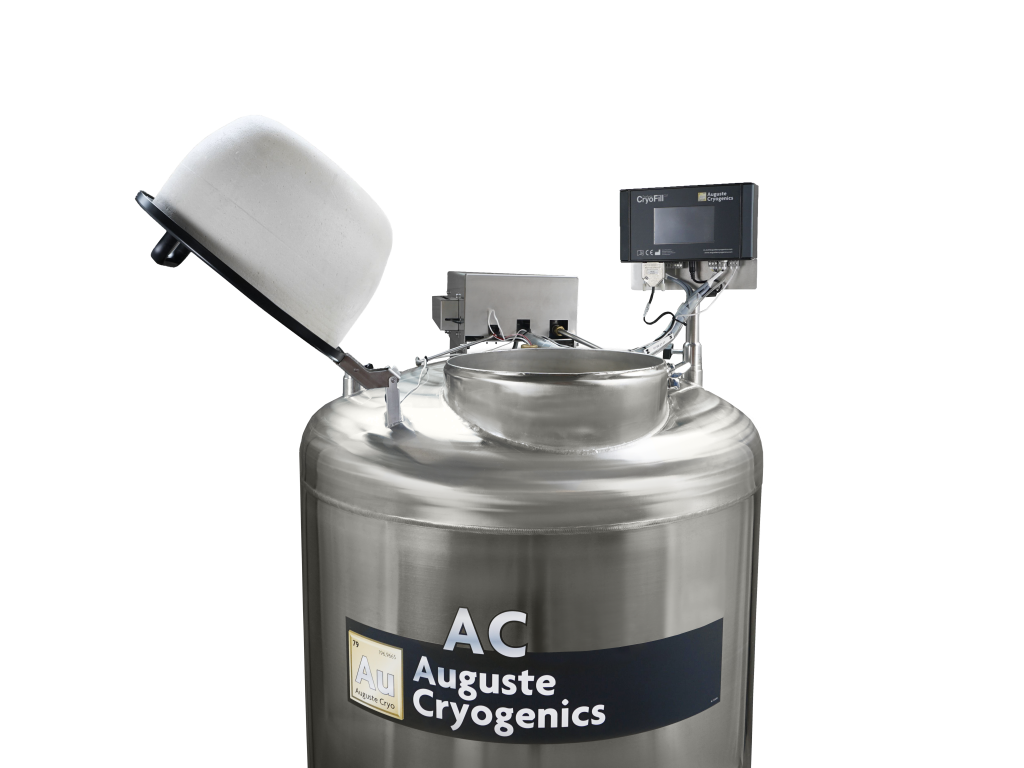

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.
Auguste Cryogenics Medical Family Freezer Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.
For both the AC BIO and AC IVF containers the approval according to the European Medical Devices Directive MDR 2017/745 has been applied for.
Technical Data
AC BIO 860 | Part No. AC BIO 860 |
---|---|
LN2 capacity (liters) | 860 |
LN2 fill height [mm] | 180 |
LN2 value below the base plate [l] | |
Outside diameter (mm) | 1150 |
Total height (mm) | 1597 |
Usable height [mm] | 740 |
Neck opening (mm) | 446 |
Empty weight (kg) (without ICS**) | 417 |
Static evaporation rate (liters / day) | 9 |
Static hold time (days) | |
Number of castors | 5 |
Number of storage carousels | 1 |

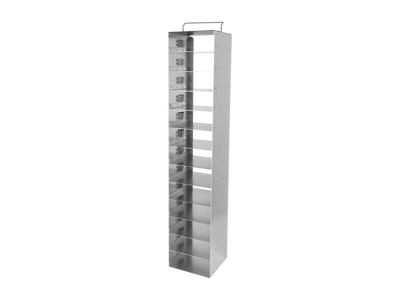

Number of racks | 26x of 10x10 Cryoboxes / 12x of 5x5 Cryoboxes |
Straw holding capacity 0,25 ml | 186.000 |
Straw holding capacity 0,5 ml | 82.800 |
2ml Vials capacity (rack) | 37.700 |
* The values given are nominal values that were determined without storage system equipment
and under precisely defined conditions. Depending on the operating conditions and the storage
system equipment used, the actual values can deviate considerably.
** ICS = Inventory Control System
Due to our policy of continuous product improvement, we reserve the right to change
specifications at any time without prior notice.
Function:
The cooling effect required for cryogenic sample storage is generated by the continuous evaporation of the liquid nitrogen refrigerant. The necessary heat of vaporization is extracted from the environment by heat transfer. As a result, the liquid nitrogen level in the deep-freeze storage tanks is constantly falling.
Regular, controlled refilling is therefore required (automatically or manually). This results in the liquid level curve shown here. In order to prevent unnecessary nitrogen losses and icing of the storage containers, liquid nitrogen should be refilled at pressures between 0.7 bar - 1.4 bar only.
The insulating properties of the Auguste Cryogenics Medical Family are essentially based on the presence of a vacuum between the inner and outer container. A vacuum loss inevitably leads to a very high increase in nitrogen consumption and poses a risk for the stored samples if there is no refill with liquid nitrogen.
