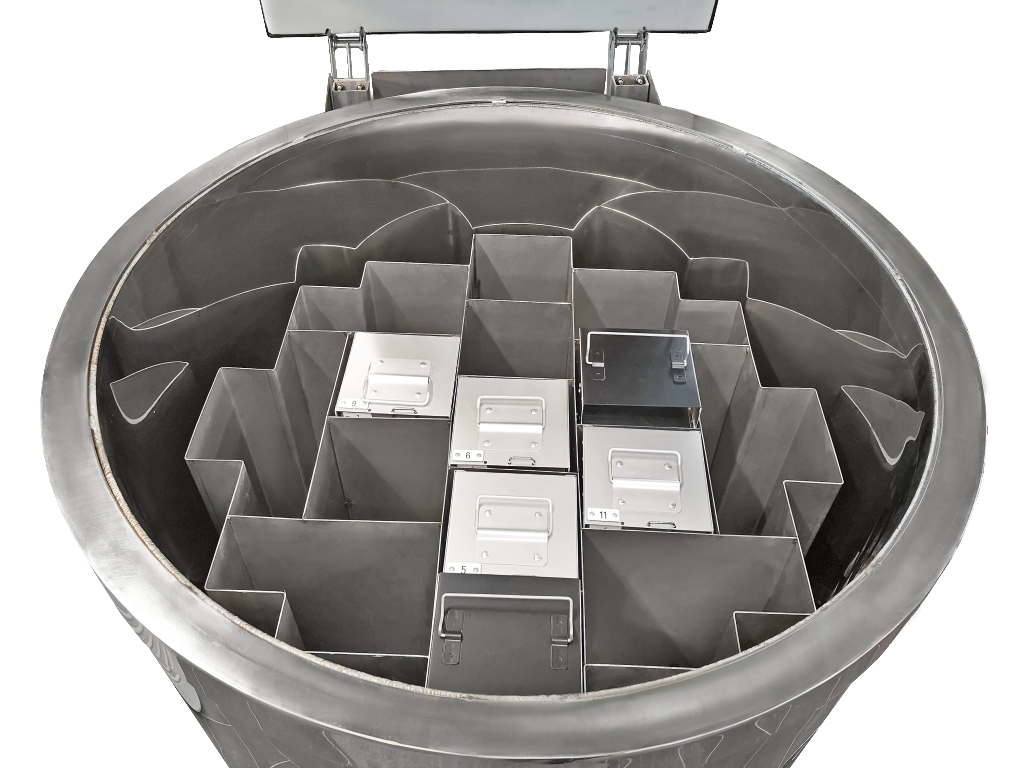

AC SYS 480 with frame for liquid phase storage

Auguste Cryogenics developed the stainless steel containers in this series from the ground up using state-of-the-art technology. They are specially designed for the safe and economical long-term storage of larger sample quantities and are therefore used in the fields of medicine, pharmaceuticals and research.

The vacuum-insulated products come with Auguste Cryogenics' GOLD-standard vacuum and offer a remarkably high storage capacity in a clear, smooth-running stainless steel storage system.

The lid of the container opens easily and wide, allowing easy access to the contents. It is convenient to clean and is equipped with a control switch that, in addition to an "open lid" detection, can also send other control signals, for example for automatic demisting or rapid cooling.

Auguste Cryogenics Medical Family SYS Series vessels can be supplied with automatic filling and control systems to ensure a regulated supply of cryogenic liquid nitrogen and continuous monitoring.

MDR – Medical Device Regulation (EU)
The Medical Device Regulation (MDR) defines harmonized requirements across Europe for products intended for medical applications. MDR-compliant nitrogen containers meet the highest standards in terms of safety, quality, and documentation, and are specifically designed for use in sensitive environments such as medical, laboratory, and research settings.
They offer verified reliability, compliant design, and full traceability throughout the entire product lifecycle.

* The values given are nominal values that were determined without storage system equipment
and under precisely defined conditions. Depending on the operating conditions
and the storage system equipment used, the actual values can deviate considerably.
Due to our policy of continuous product improvement, we reserve the right to change
specifications at any time without prior notice.

• with box to accommodate the piping and valves
• with storage frame
• without storage system

Specifications

LN2 capacity (liters): 480
Outside diameter (mm): 900
Total height (mm): 1205
2ml Vials capacity: 20400
available as an MDR product: yes (optional)
