The aluminum containers of the DS series from Auguste Cryogenics Medical Family are cryogenic freezer containers specially designed for the transport of biogenic material in liquid nitrogen. The special material inside
the container absorbs the liquid nitrogen and allows a safe transport without risk of spillage while the valuable material remains safely cooled at the lowest possible temperature.
The containers of the Auguste Cryogenics Medical Family stand out
The vacuum-insulated aluminum containers of the Medical Family are thus ideally suited for use in medical institutes, biological laboratories, artificial insemination institutes and pharmaceutical facilities.
The DS containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.
With the AC Medical Family, Auguste Cryogenics presents its new product line of vacuum-insulated aluminum containers for the transport and storage of nitrogen-cooled material. The products in this group were developed for long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are possible depending on the design and equipment.
The containers of the AC Medical Family can be used in many ways - for insemination as well as in the medical and pharmaceutical sector and for various industrial processes. Biological material can be stored in the liquid or gas phase of the container, depending on the intended use and the temperature requirements.
The products of the DS series complete the AC Medical Family. This Dry Shippers contain a special material that absorbs the liquid nitrogen. This means that the containers can be easily transported on all routes, even by plane.
|AC DS8-S||Part No. H-AAD1100113|
|LN2 capacity (liters)||3,2|
|Empty weight (kg)||6,2|
|Neck opening (mm)||80|
|Outside diameter (mm)||300|
|Total height (mm)||513|
|Static evaporation rate (liters / day)||0,23|
|Static hold time (days)||14|
|Canister diameter (mm)||63|
|Canister height (mm)||120|
|Vials capacity сanister 120 mm (-S) 0,25 ml||837|
|Vials capacity сanister 120 mm (-S) 0,5 ml||374|
|Vials capacity сanister 276 mm (-S) 0,25 ml|
|Vials capacity сanister 276 mm (-S) 0,5 ml|
|Dimensions of the racks (mm)|
|Box dimensions (mm)|
|Levels per rack|
|25 ml blood bag racks (multi)|
|Levels per 25 ml blood bag rack (multi)|
|Boxes per level 25 ml (multi)|
|25 ml blood bag (multi)|
|50 ml blood bag racks (multi)|
|Levels per 50 ml blood bag rack (multi)|
|Boxes per level 50 ml (multi)|
|50 ml blood bag (multi)|
|available as an MDD product|
|Packing dimensions (mm)||340*340*615|
|Shipping volume (m3)||0,071|
|Weight including packaging (kg)||7,3|

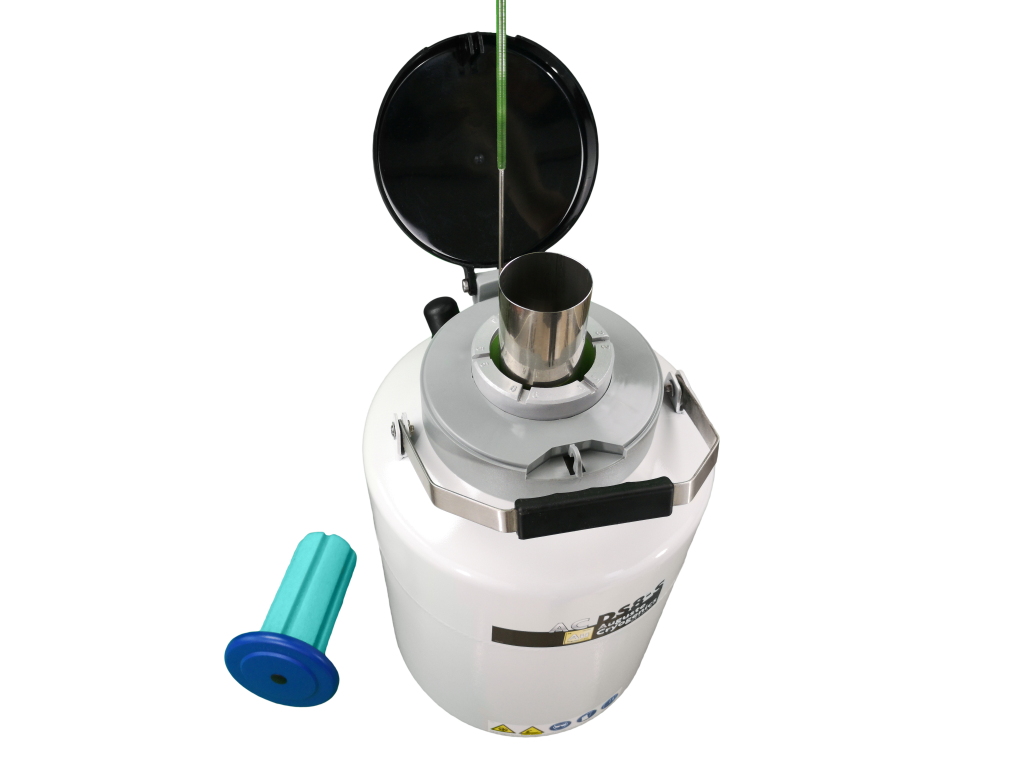

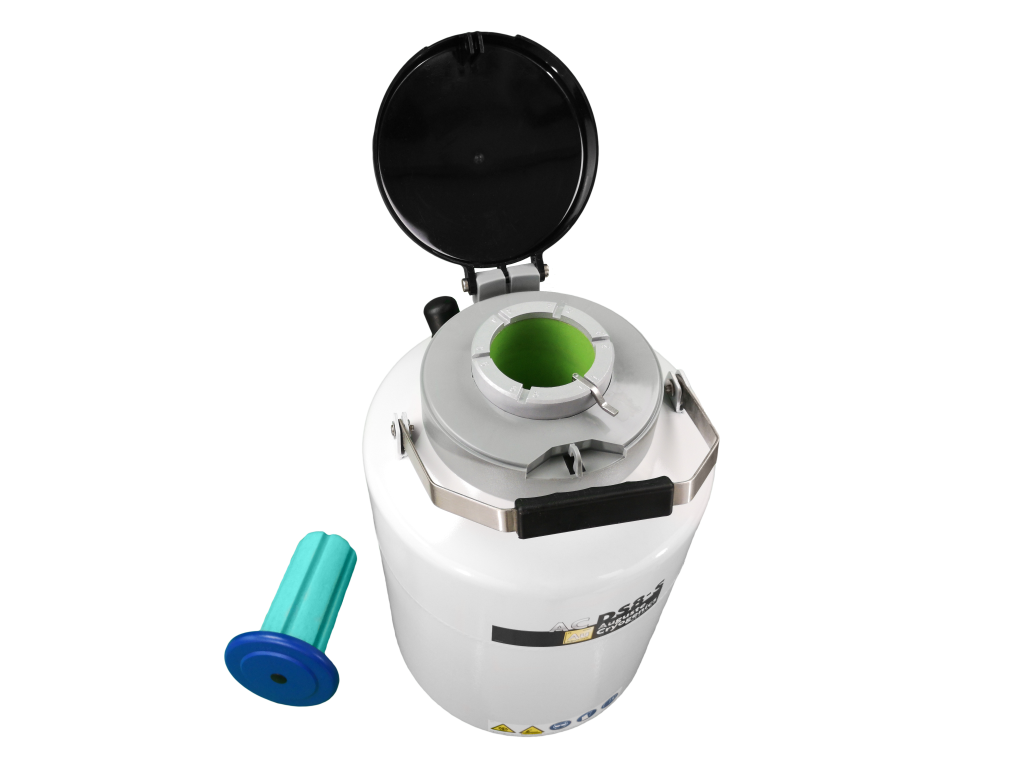

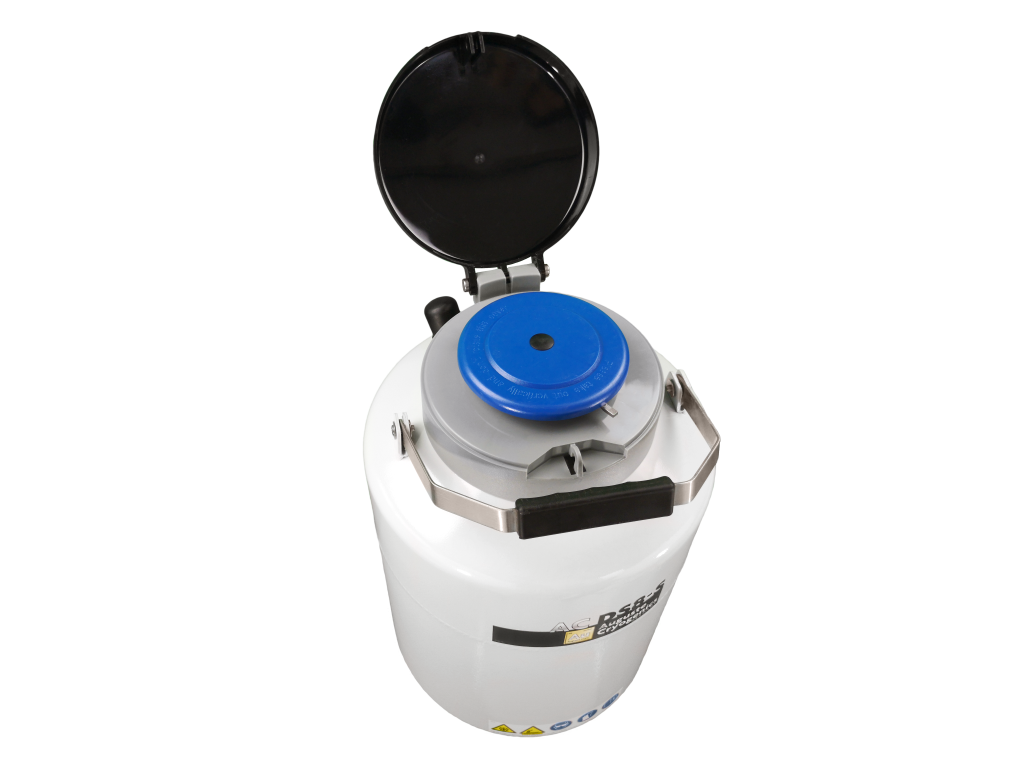

This aluminum vessel has 1 canister (120mm) lockable black lid
