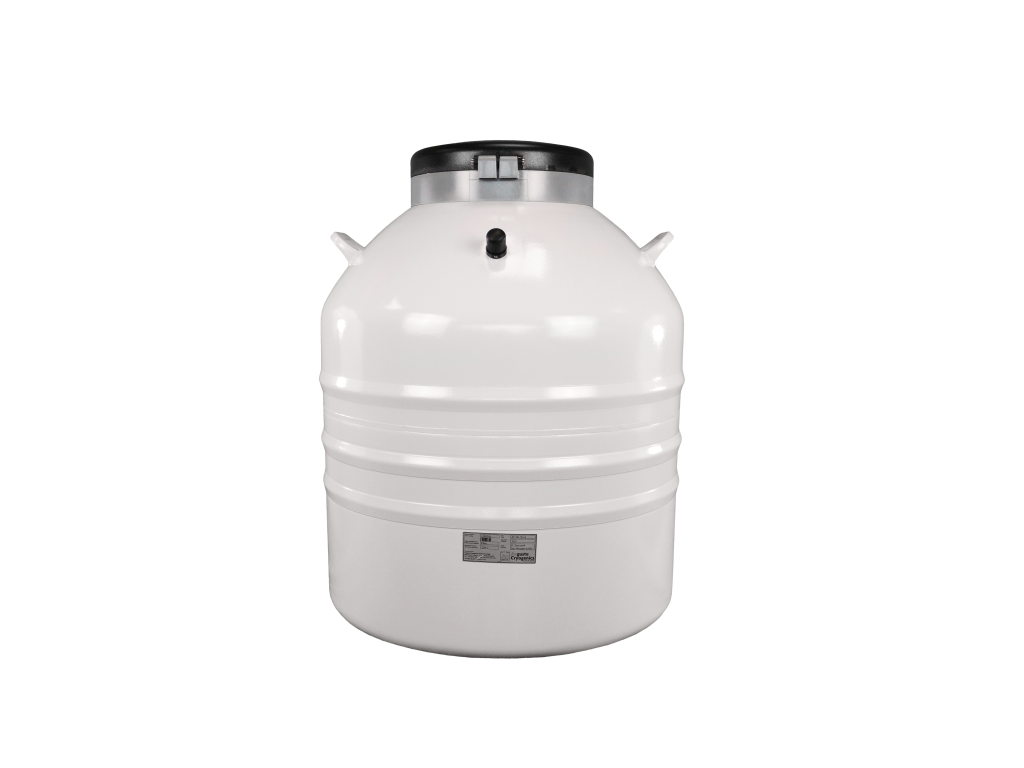

The aluminum containers of the 2XL- | 3XL-B - series from Auguste Cryogenics Medical Family are cryogenic freezer containers for long-term storage of biogenic material in liquid nitrogen - with many possible uses in laboratory and technology.
The containers of the Auguste Cryogenics Medical Family stand out off through:
• High portability thanks to its low weight and compact dimensions
• Long holding times, resulting in high economic efficiency
• large storage capacity
The vacuum-insulated aluminum containers of the Medical Family are thus ideally suited for use in medical institutes, biological laboratories, artificial insemination institutes and pharmaceutical facilities. Various containers from the Auguste Cryogenics Medical Family are transportable and have ADR approval.
With the AC Medical Family, Auguste Cryogenics presents its new product line vacuum-insulated aluminum container for transport and storage of nitrogen-cooled material. The products of this group were made for long holding times with the lowest possible nitrogen consumption. Static holding times from three weeks to over half a year are depending on Design and equipment possible.
The containers of the AC Medical Family can be used in many ways - at insemination as well as in the medical and pharmaceutical field and for various industrial processes. Depending on the purpose and requirements biological material can be stored in the liquid or gas phase of the containers are stored.
The containers of the 2XL and 3XL-B models differ primarily due to their different neck diameters of 125 and 216 mm. you are primarily for the systematic storage of large quantities of biological material Material provided, the boxes in the stainless steel racks in the nitrogen liquid phase are cooled.
MDR – Medical Device Regulation (EU)
The Medical Device Regulation (MDR) defines harmonized requirements across Europe for products intended for medical applications. MDR-compliant nitrogen containers meet the highest standards in terms of safety, quality, and documentation, and are specifically designed for use in sensitive environments such as medical, laboratory, and research settings.
They offer verified reliability, compliant design, and full traceability throughout the entire product lifecycle.
Technical Data
| AC 3XL115-B | Part No. H-AAD1100056 |
|---|---|
| LN2 capacity (liters) | 115 |
| Empty weight (kg) | 42,3 |
| Neck opening (mm) | 216 |
| Outside diameter (mm) | 681 |
| Total height (mm) | 846 |
| Static evaporation rate (liters/day) | 0,94 |
| Static hold time (days) | 122 |
| Racks | 6 |
| Dimensions of the racks (mm) | 142*144 |
| Dimensions of the cryo boxes (mm) | 134*134 |
| Floors per rack | 6 |
| 2ml Vials capacity | 3600 |
| 25 ml blood bag racks (multi) | 6 |
| Levels per 25 ml blood bag rack (multi) | 3 |
| Boxes per level 25 ml (multi) | 10 |
| 25 ml blood bag (multi) | 180 |
| 50 ml blood bag racks (multi) | 6 |
| Levels per 50 ml blood bag rack (multi) | 3 |
| 50 ml boxes per level (multi) | |
| 50 ml blood bag (multi) | 144 |
| ADR | no |
| available as an MDR product | yes (optional) |
| Product dimensions (mm) | 780*780*1025 |
| Shipping volume (m3) | 0,624 |
| Weight including packaging (kg) | 69,2 |
* The values given are nominal values, determined without a storage system and under
precisely defined conditions. Depending on the operating conditions and the
storage system used, the actual values may vary considerably.
In the course of continuous product improvement and development,
we reserve the right to change the specifications at any time without prior notice.

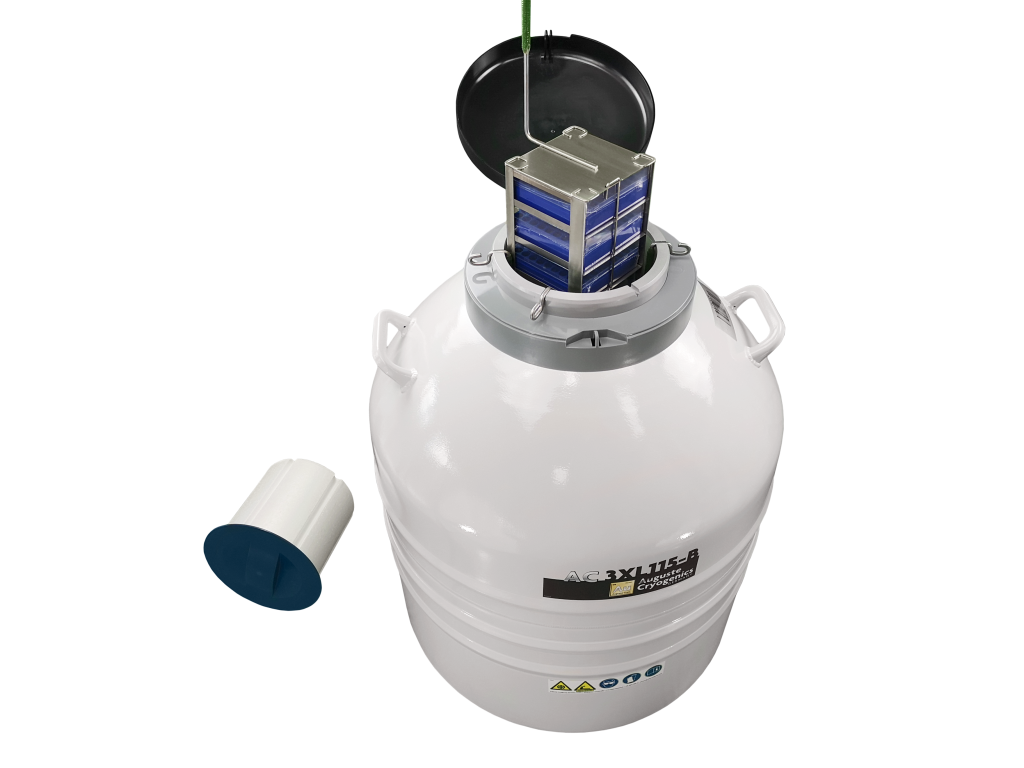

Including 6 racks and 36 cryoboxes (10x10)
Download datasheet:
